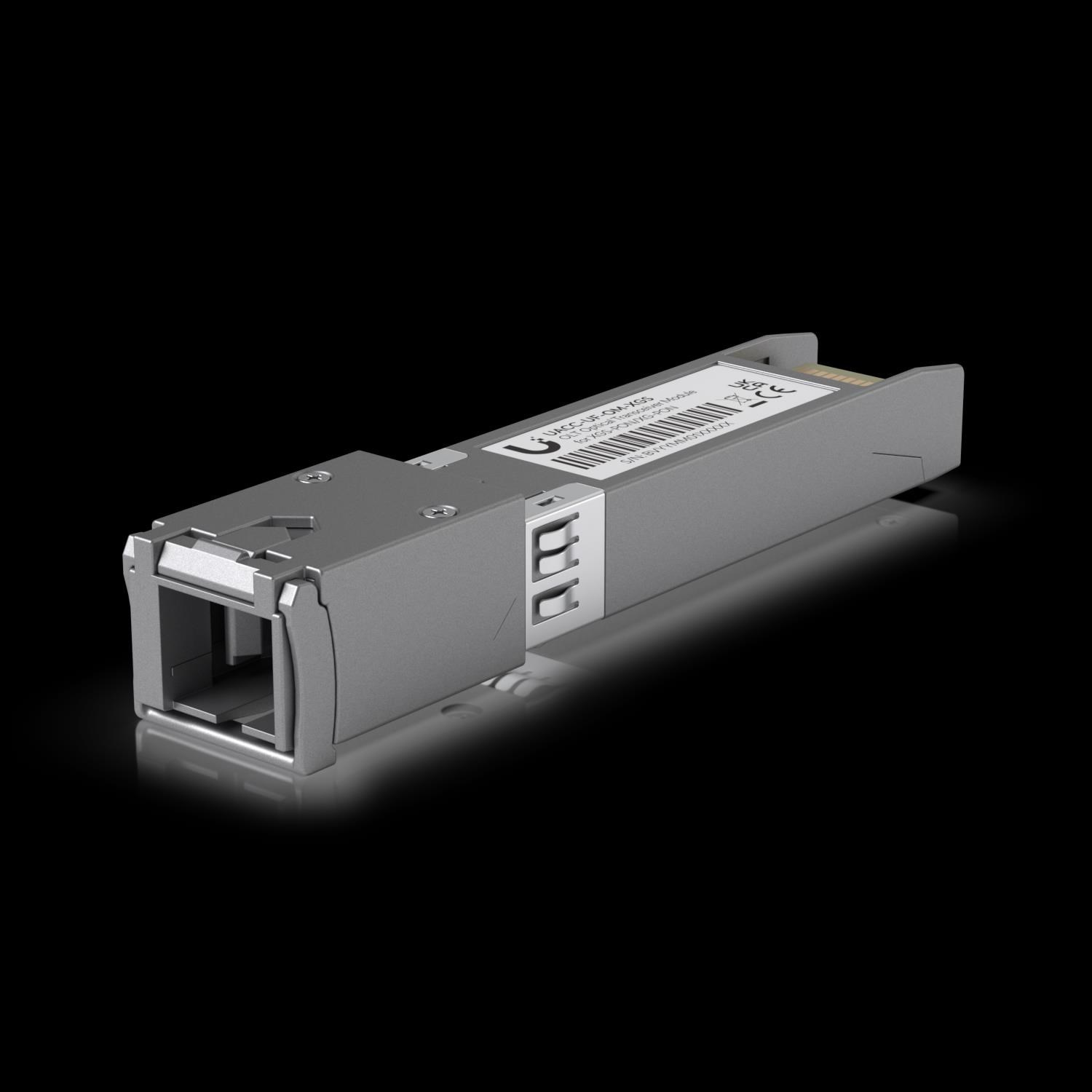

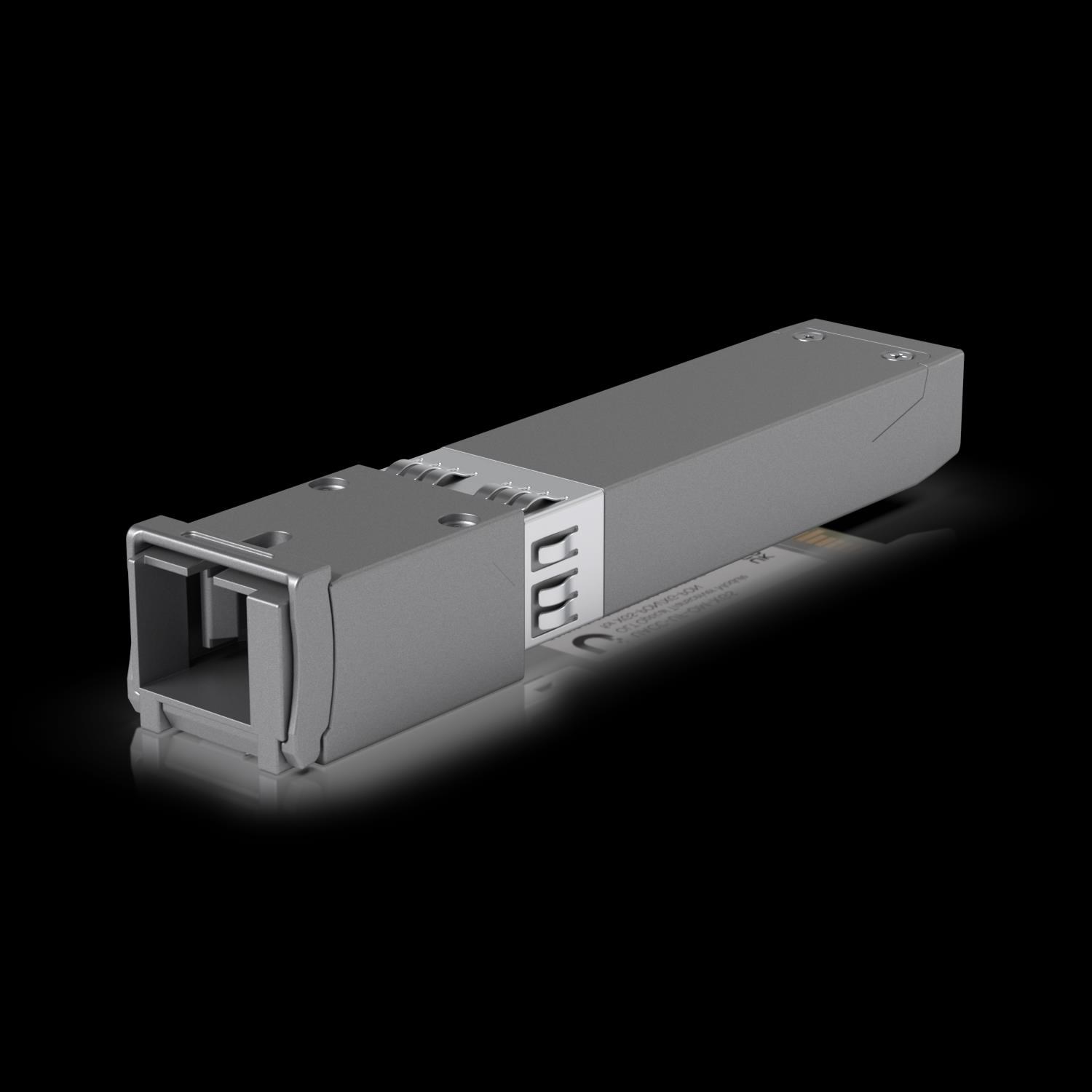

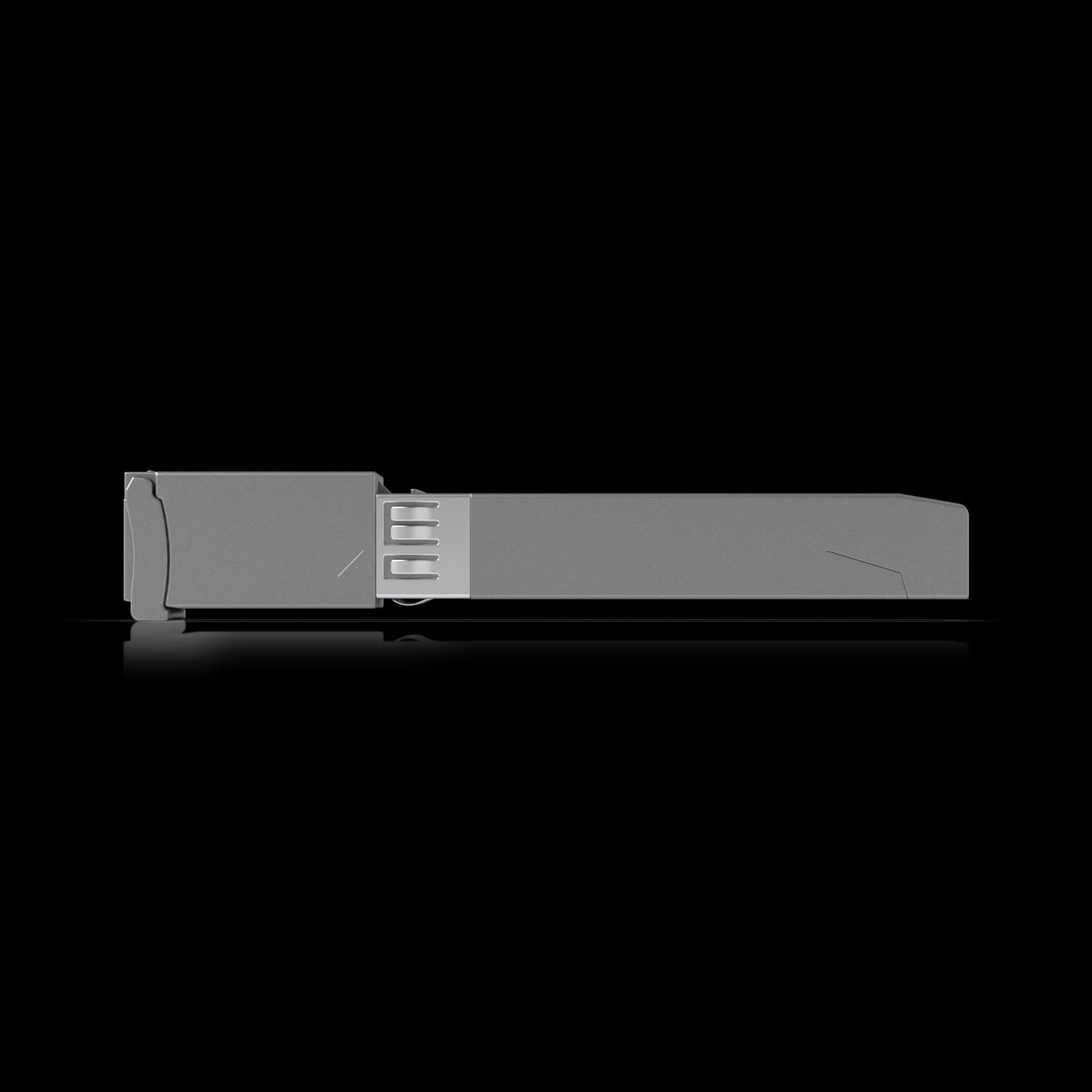

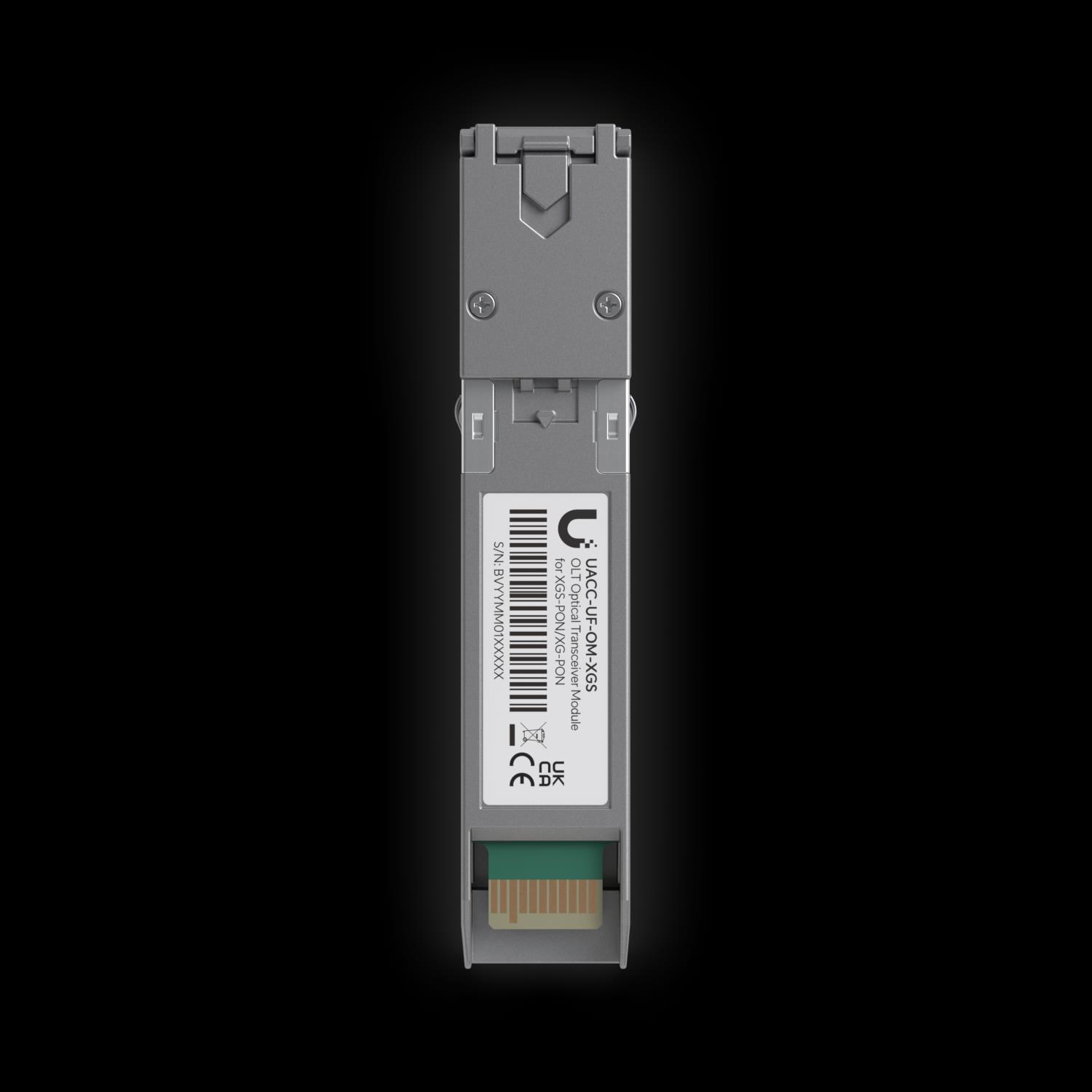

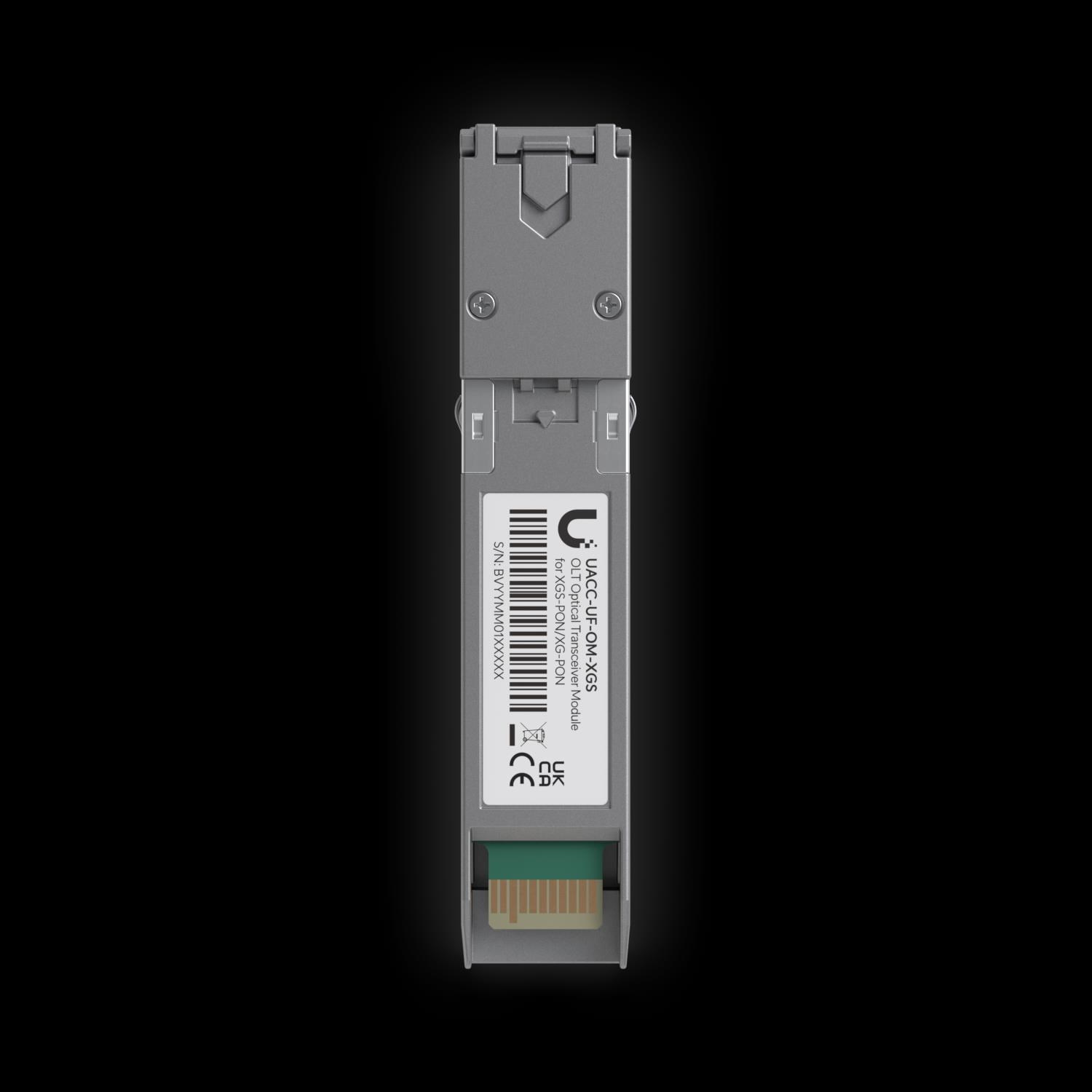

UBNT UACC-UF-OM-XGS, XG/XGS-PON Optical Transceiver
Kód:
10901825
Záruka:
24 Měsíc(ů)
Popis a parametre
UBNT UACC-UF-OM-XGS, XG/XGS-PON Optical Transceiver
Description & Key Features XG/XGS-PON Optical Transceiver Features: Supports XGS-PON (10Gbps / 10Gbps) and XG-PON (2.5Gbps / 10Gbps) data rate standards for uplink / downlink speeds Cable distances up to 20 km Capable of a 1:256 subscriber split ratio Compatible with the: UISP Fiber OLT XGS UISP Fiber XGS UISP Fiber XG Technical Specifications UACC-UF-OM-XGS Supported media Single-mode fiber Connector type (1) SC/UPC TX wavelength 1,577nm RX wavelength 1,270nm TX power range +4 to +7 dBm RX power range -9 to -26 dBm Downlink data rate 10 Gbps Uplink data rate 10 Gbps (XGS) / 2.5 Gbps (XG) Max. power consumption 2.6W Max. cable distance 20 km Operating temperature 0 to 70° C (32 to 158° F) Storage temperature -40 to 85° C (-40 to 185° F) Packaging Single pack WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 - Do not look into the ends of the fiber/optical cable or the SFP module while the converters are powered..
