MSI MB Sc LGA1700 PRO B760M-A WIFI, Intel B760, 4xDDR5, 2xDP, 2xHDMI, WI-FI, mATX

Formát:micro ATX; Chipset:Intel B760; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:2.... viac
142.64 EUR bez DPH
Skladom > 5 ks
171.17 EUR
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 2648463
EAN: 4711377059572
Záruka: 36 Měsíc(ů)
Popis a parametre

MSI MB Sc LGA1700 PRO B760M-A WIFI, Intel B760, 4xDDR5, 2xDP, 2xHDMI, WI-FI, mATX

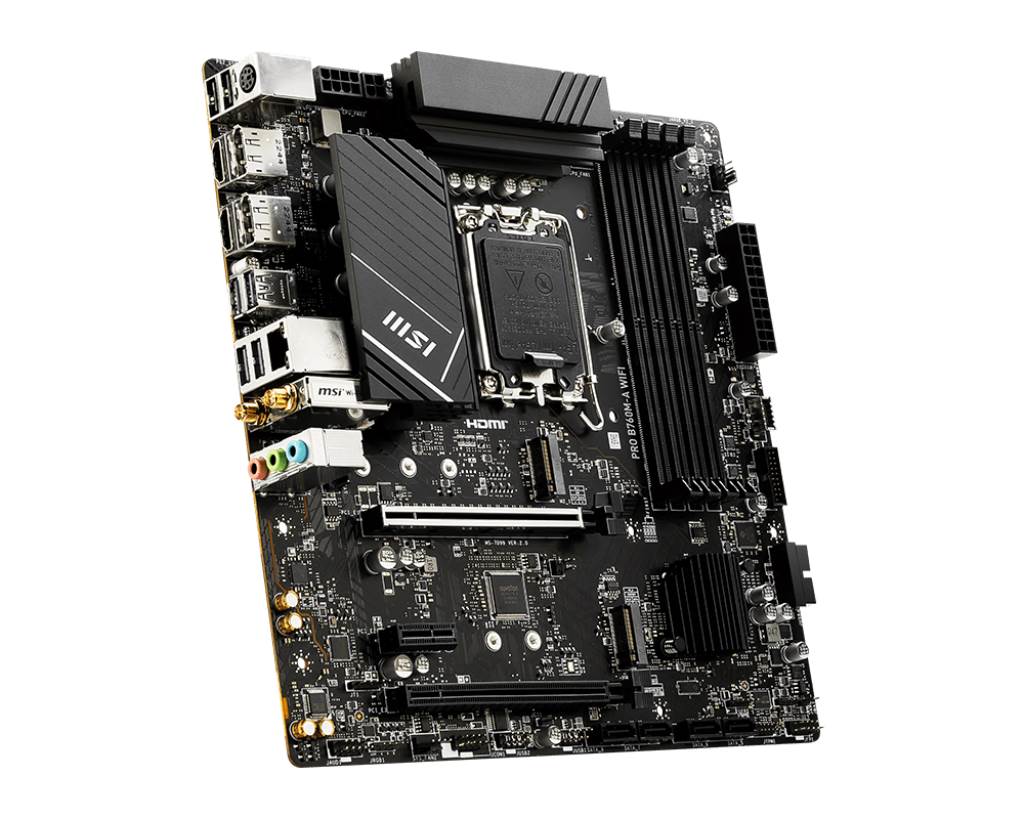

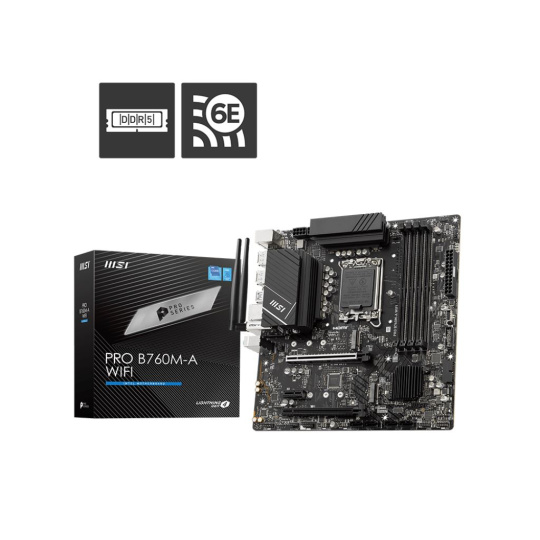

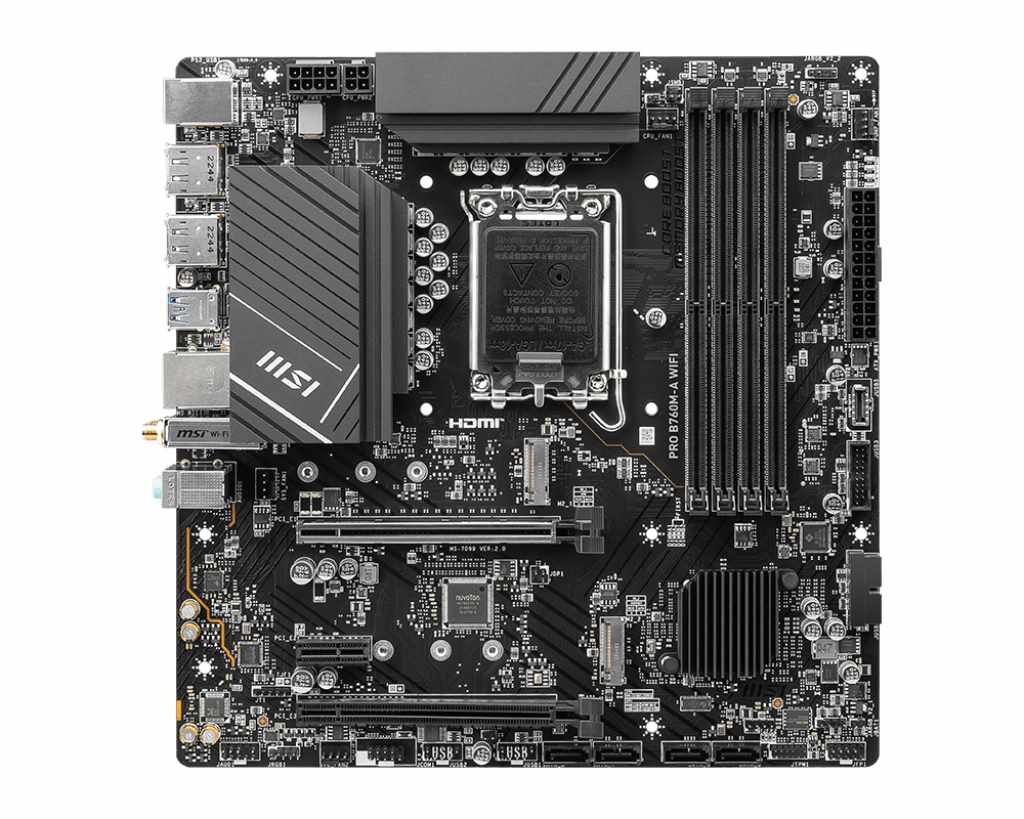

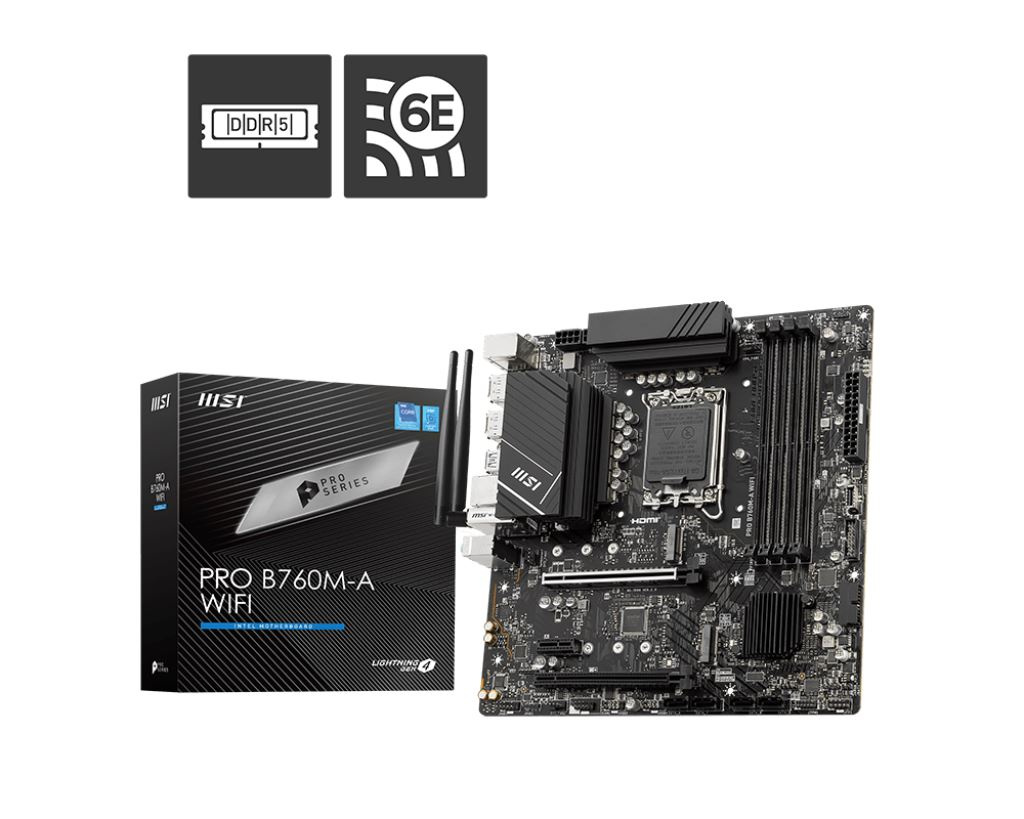

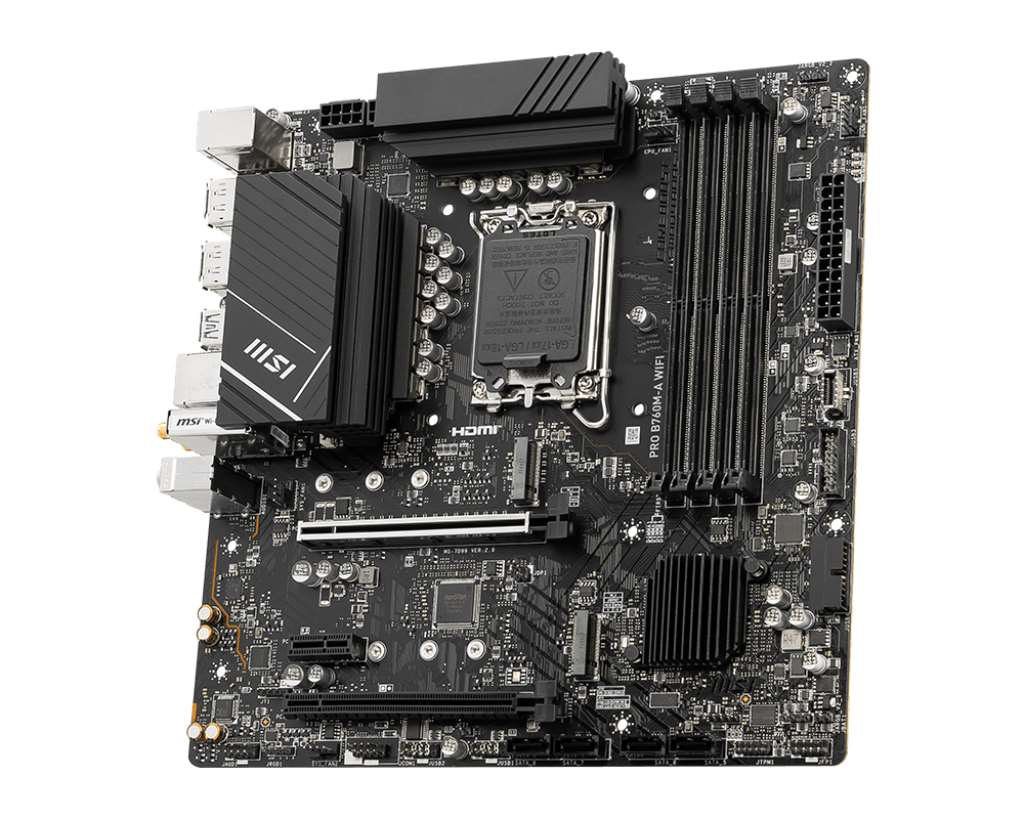

MSI PRO B760M-A WIFI

PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.


CHIPSET

INTEL B760



CPU SUPPORT

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700



MEMORY

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory



ONBOARD GRAPHICS

2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



EXPANSION SLOT

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)



STORAGE

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)



LAN

Realtek® RTL8125BG 2.5G LAN



WIRELESS / BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.



AUDIO

Realtek® ALC897 Codec
7.1-Channel High Definition Audio



INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports



LED FEATURE

4x EZ Debug LED

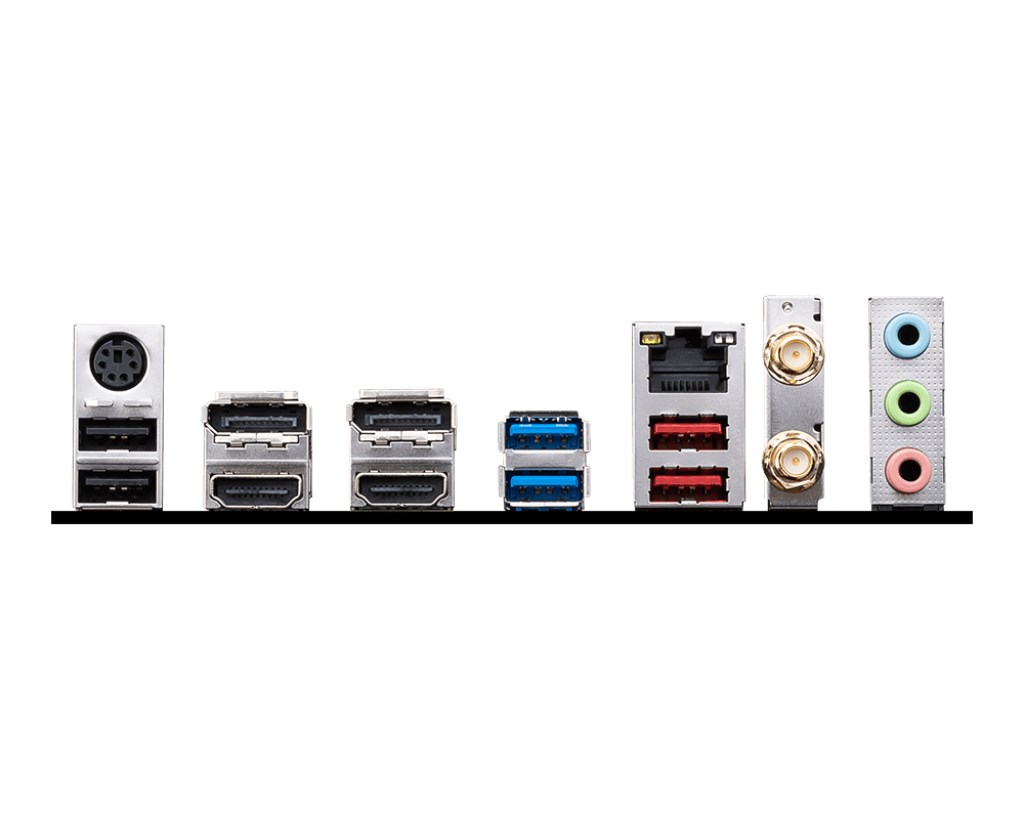

BACK PANEL PORTS

1x Keyboard / Mouse
2x DisplayPort
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x 2.5G LAN
Wi-Fi / Bluetooth
3x Audio Connectors
2x USB 2.0
2x HDMI™
2x USB 3.2 Gen 2 10Gbps (Type-A)



OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit



PCB DIMENSION (W × L)

mATX 243.84 x 243.84 mm


Co je v krabici

Wi-Fi Antenna

SATA Cables

2x M.2 Screw

I/O Shield

.
Technologie paměti RAM
DDR5
Socket (patice)
Socket 1700
Formát základní desky
micro ATX
Chipset
Intel B760
PCI Express x16
2
Podpora RAID
0
Podpora RAID
1
Podpora RAID
5
Podpora RAID
10
COM port
Ano
3.5mm Jack
Ano
Bezdrátové připojení
WiFi + Bluetooth
Pro procesory
Intel
Počet paměťových slotů
4
DisplayPort
2
TPM
Ano
USB 2
6
USB 3
8
M.2 slot
2
SATA 3
4
VGA
0
DVI
0
HDMI
2
Led Header
Ano
PCI Express x1
1
USB C
1
LAN
2.5Gbit/s
DisplayPort Type-C
0
