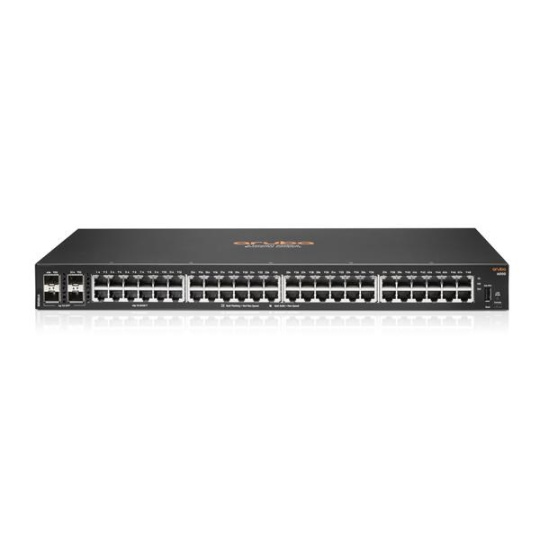

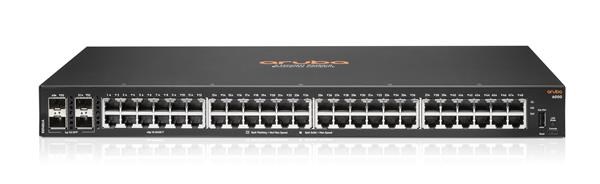

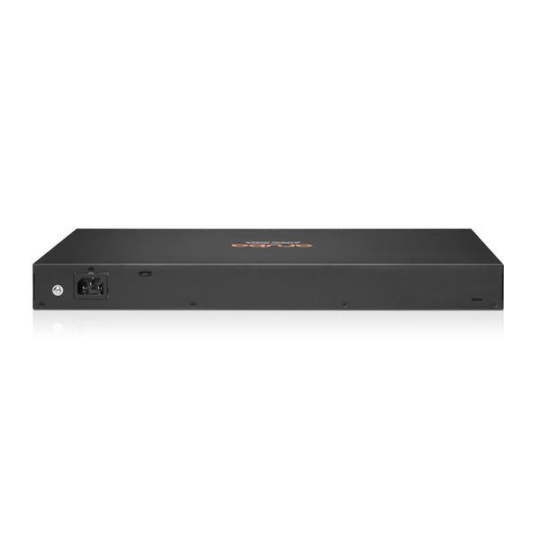

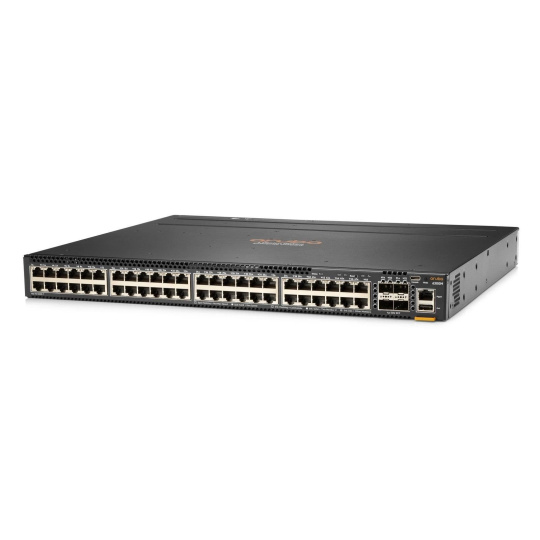

HPE Aruba Networking CX 6000 48G 4SFP Switch R8N86A
HPE Aruba Networking CX 6000 48G 4SFP Switch R8N86A
Výprodej Aruba 6000 48G 4SFP Switch

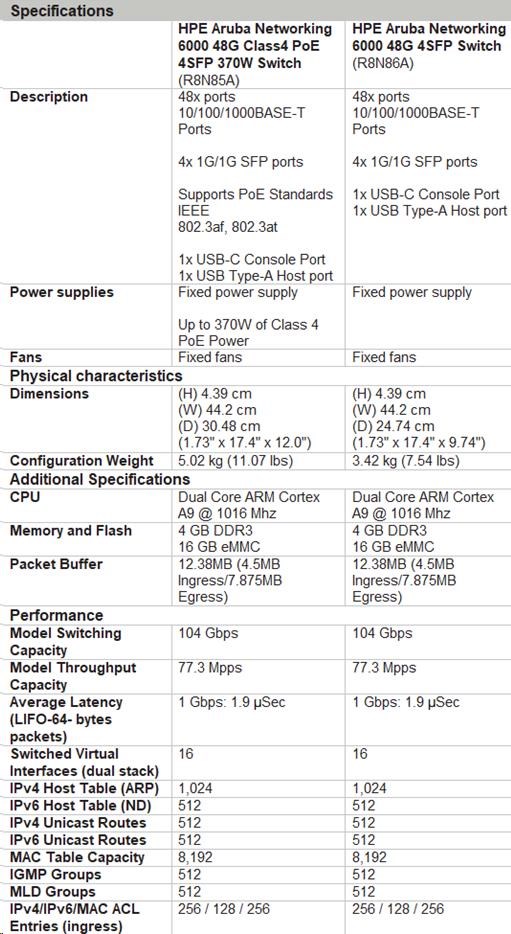

| Aruba 6000 48G 4SFP Switch (R8N86A) | |
| Description | 48x ports 10/100/1000BASE-T Ports
4x 1G/1G SFP ports 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply |
| Fans | Fixed fans |
| Dimensions | (H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74") |
| Configuration Weight | 3.42 kg (7.54 lbs) |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 4 GB DDR3 16 GB eMMC |
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) |
| Model Switching Capacity | 104 Gbps |
| Model Throughput Capacity | 77.3 Mpps |
| Average Latency (LIFO-64- bytes packets) | 1 Gbps: 1.9 µSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |

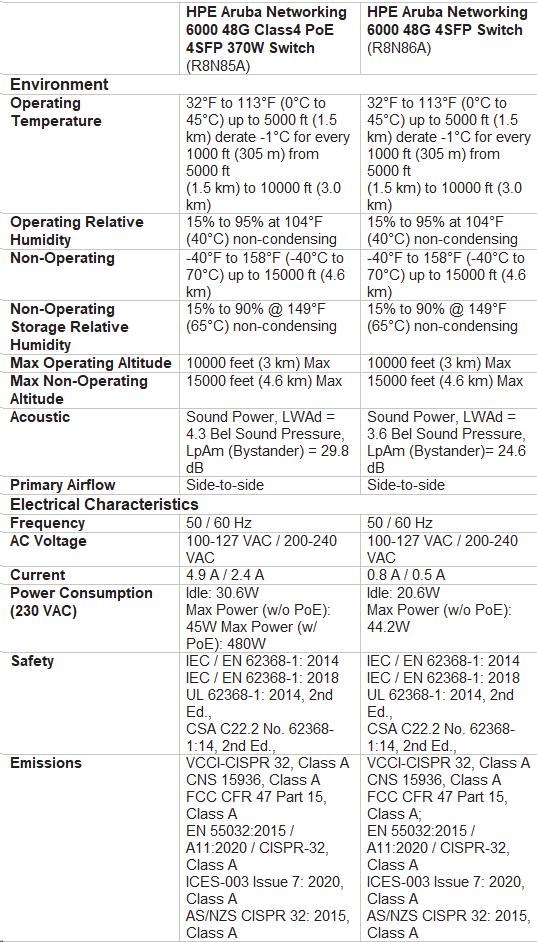

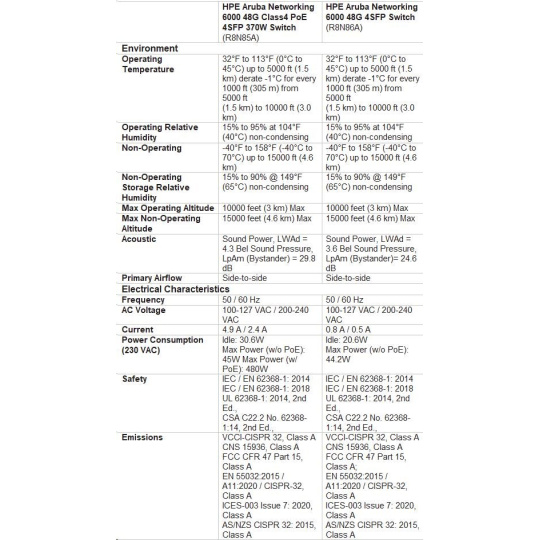

| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB |
| Primary Airflow | Side-to-side |
| Electrical Characteristics | |
| Frequency | 50 / 60 Hz |
| AC Voltage | 100-127 VAC / 200-240 VAC |
| Current | 0.8 A / 0.5 A |
| Power Consumption (230 VAC) | Idle: 20.6W Max Power (w/o PoE): 44.2W |
| Safety | UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
| Emissions | VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
.
