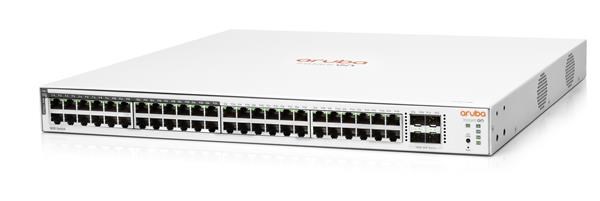

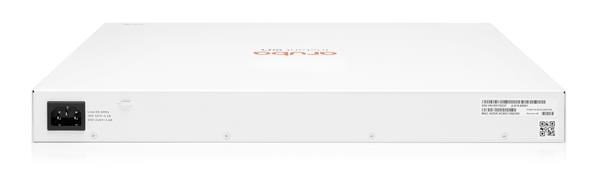

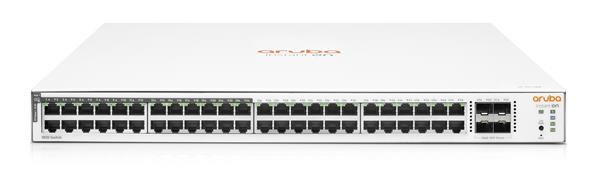

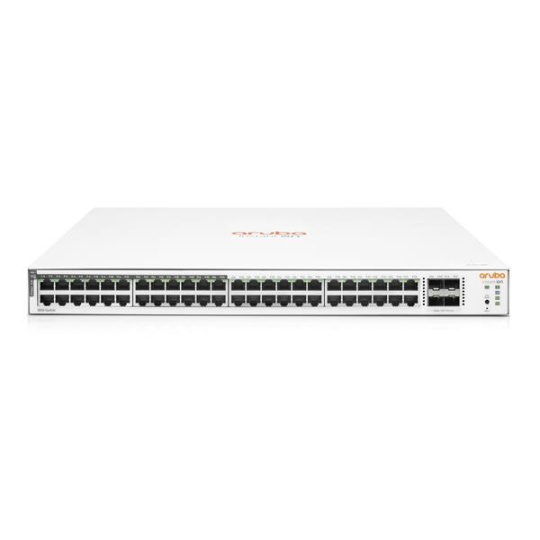

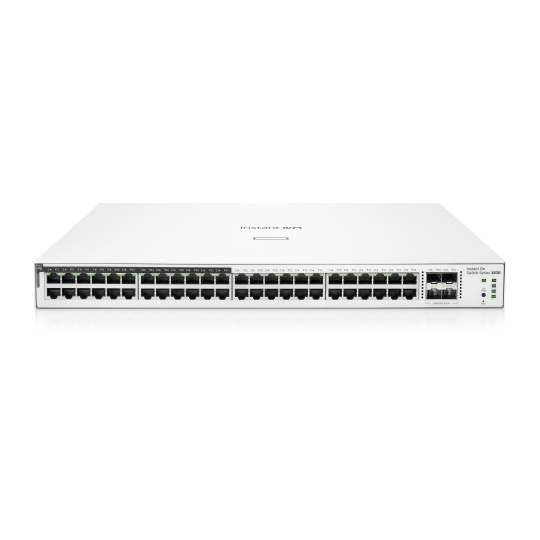

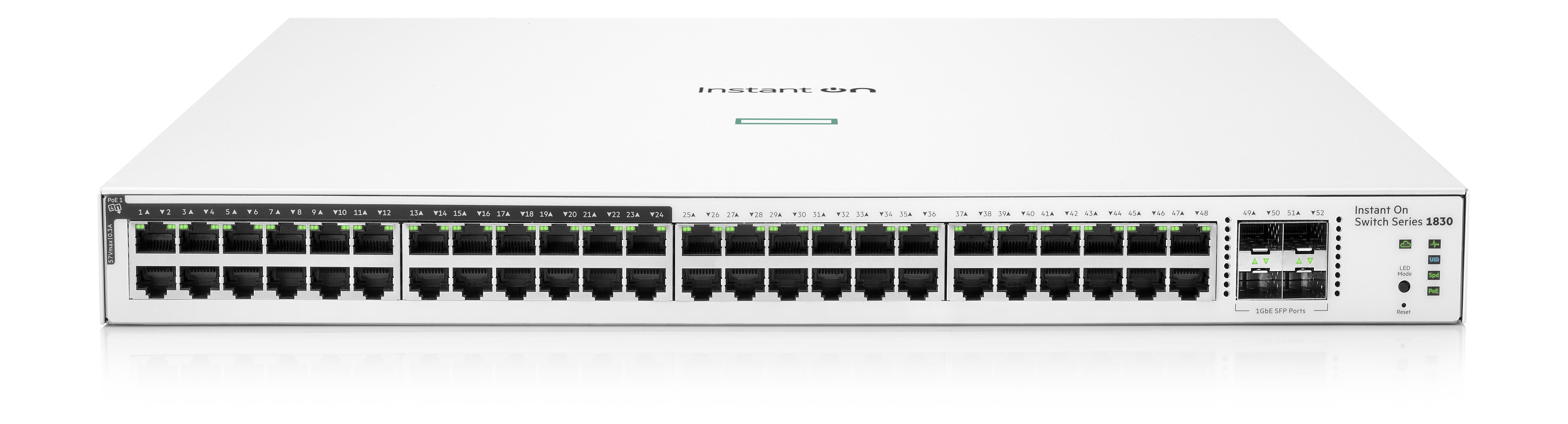

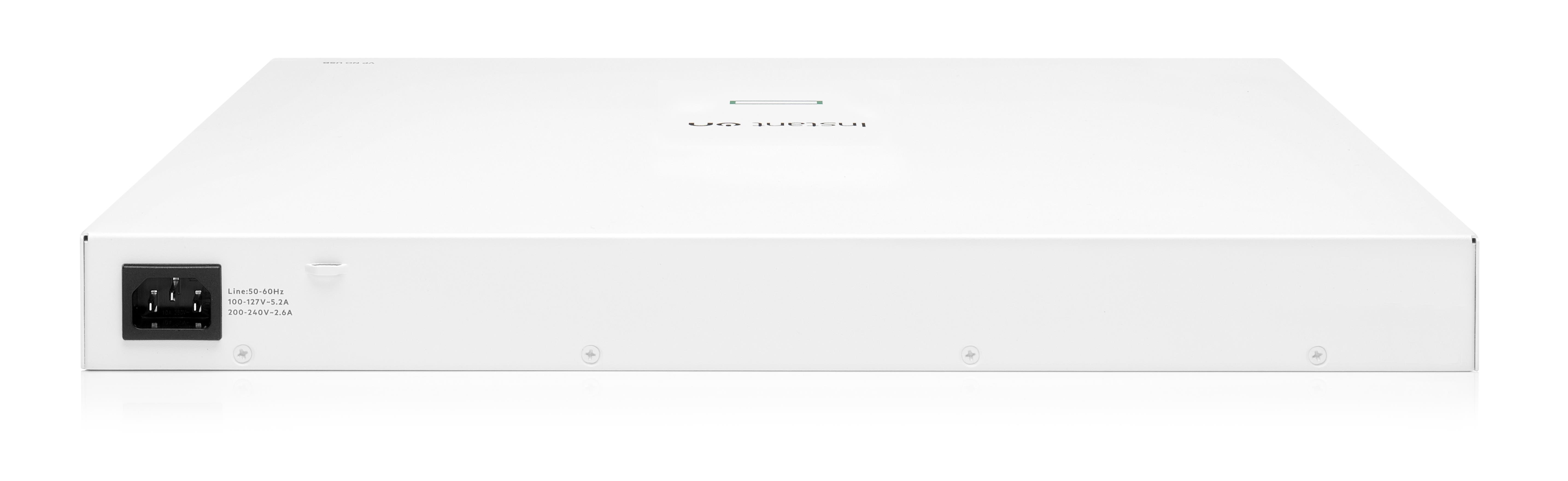

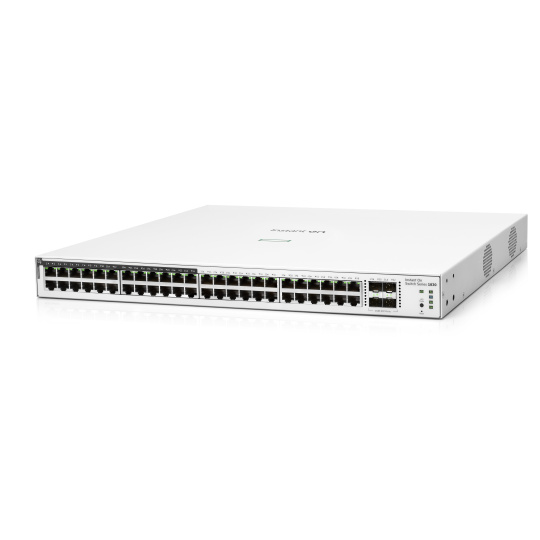

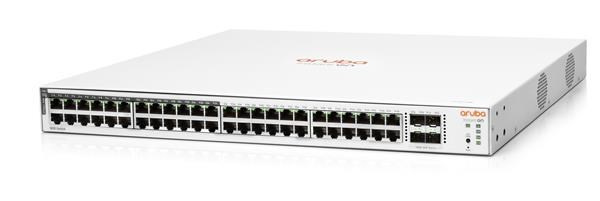

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP 370W 1830 (JL815A)

Name: HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP 370W 1830 (JL815A)
Brand: Hewlett Packard Enterprise
SKU: 1881009
Price: 576.7 EUR
Availability: InStock

zadarmo

-2%

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP 370W 1830 (JL815A)

Kód: 1881009

EAN: 190017524429

Záruka: 99 Doživotní

Výrobca: Hewlett Packard Enterprise

Pridať do obľúbených Pridať do porovnania Otázka pre predajcu Stráženie produktu

Popis a parametre

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP 370W 1830 (JL815A)

ParametrePridať do porovnania

Maximálny počet portov

Prevedenie

Desktop

Prevedenie

Rack mounted 19"

Technológia

Gigabit Ethernet 1000Mbps

Management

SNMP/RMON

Funkce

QoS (Quality of service)

Funkce

VLAN (virtual local area network)

Funkce

DHCP snooping

Funkce

Stohovatelnost

Funkce

Web management/Smart switch

Funkce

VPN

Funkce

Počet SFP portů

Počet PoE Out portů

Počet portů Combo

Podporované standardy PoE

802.3at

Podporované standardy PoE

802.3af

Ventilátor

Ano

Počet portů LAN

Počet PoE Out portů

Počet portů Combo

Počet SFP portů

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP 370W 1830 (JL815A)

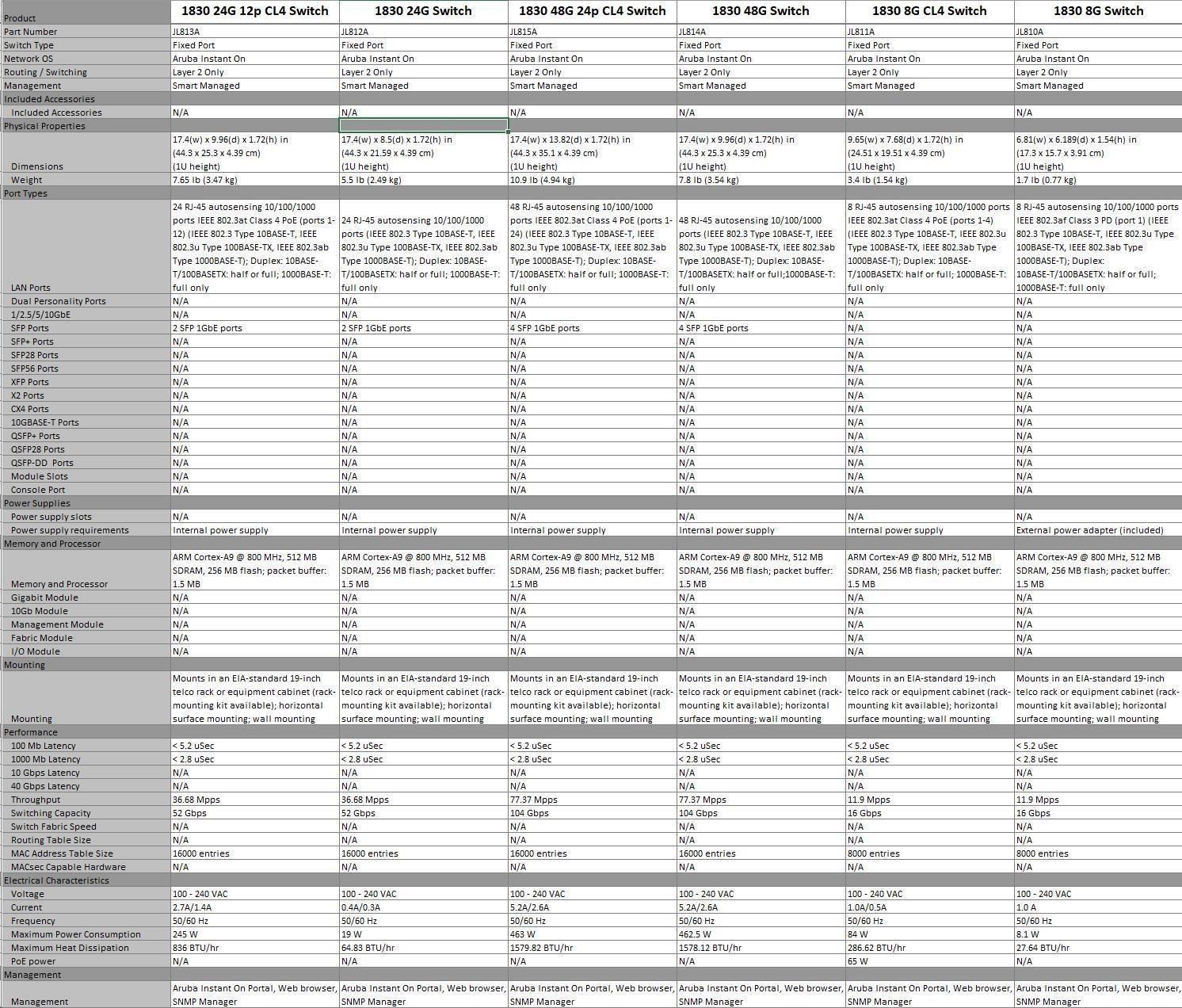

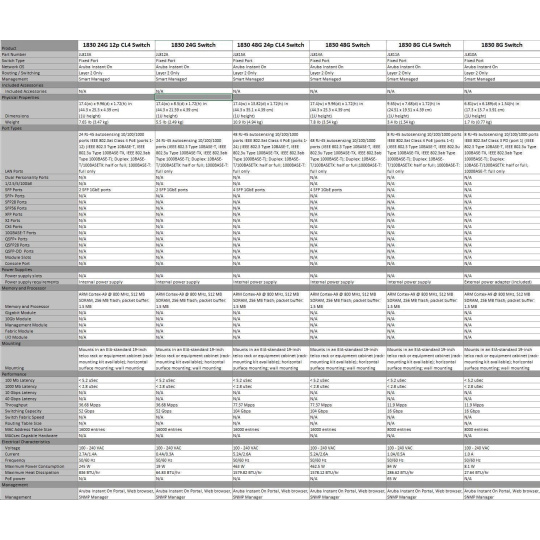

	Aruba Instant On 1830 8G Switch (JL810A)	Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)			Aruba Instant On 1830 24G 2SFP Switch (JL812A)		Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)	Aruba Instant On 1830 48G 4SFP Switch (JL814A)	Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
I/O ports and slots
	8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only	8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only		24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports		24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports		48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports	48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports
Physical Characteristics
Dimensions	157.0(d) x 173.0(w) x 39.1(h) mm	195.1(d) x 245.1(w) x 43.9(h) mm		215.9(d) x 443.0(w) x 43.9(h) mm		253.0(d) x 443.0(w) x 43.9(h) mm		253.0(d) x 443.0(w) x 43.9(h) mm	351.0(d) x 443.0(w) x 43.9(h) mm
Weight	1.70 lb (0.77 kg)	3.40 lb (1.54 kg)		5.50 lb (2.49 kg)		7.65 lb (3.47 kg)		7.80 lb (3.54 kg)	10.90 lb (4.94 kg)
Processor and Memory
	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB	"RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB

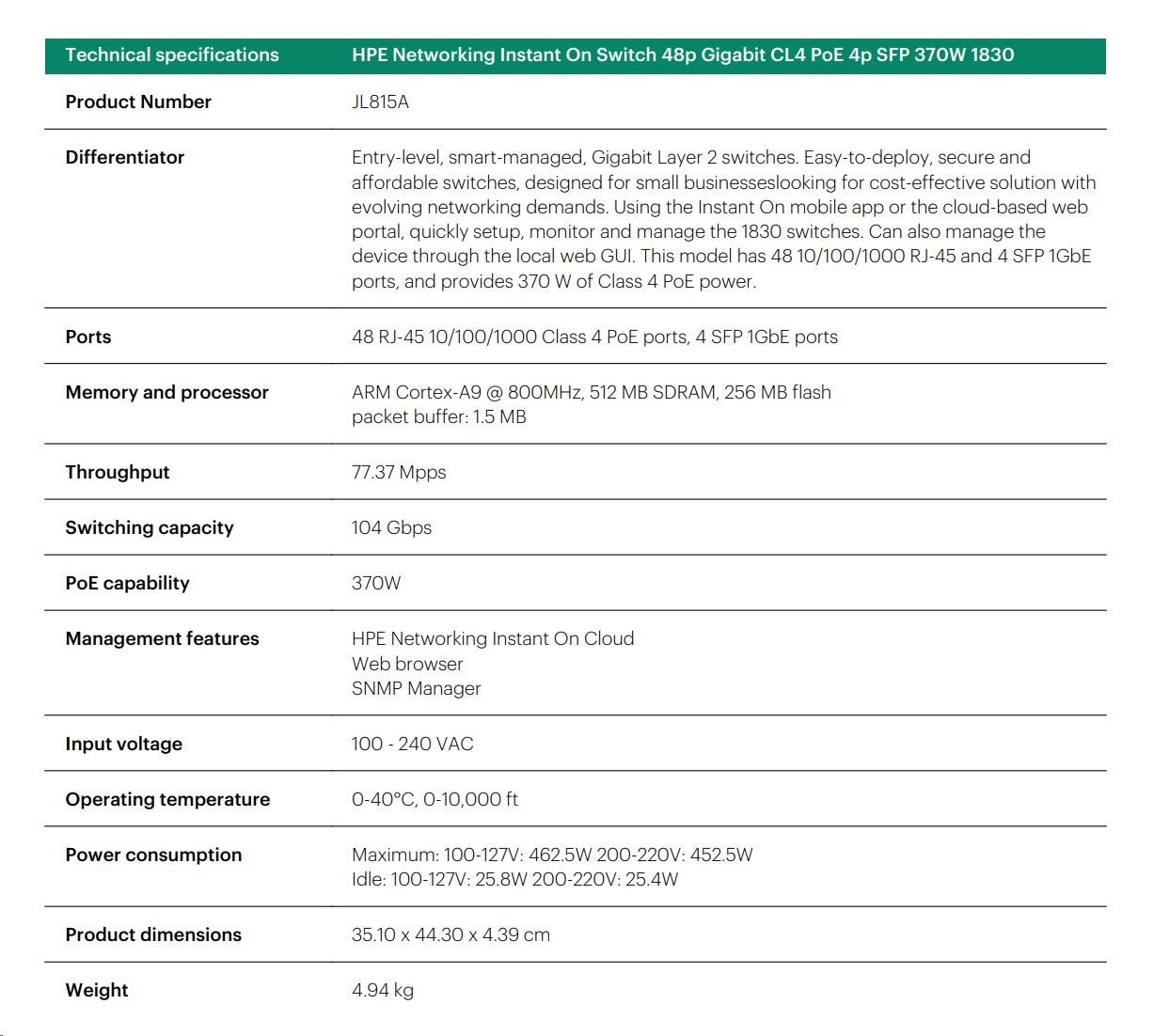

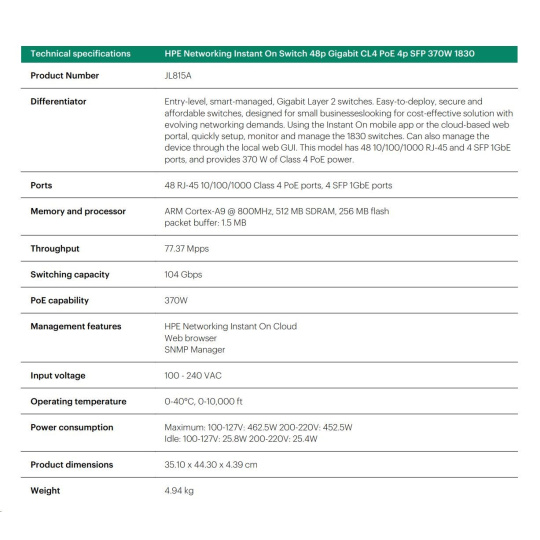

Product	1830 48G 24p CL4 Switch
Part Number	JL815A
Switch Type	Fixed Port
Network OS	Aruba Instant On
Routing / Switching	Layer 2 Only
Management	Smart Managed
Included Accessories
Included Accessories	N/A
Physical Properties
Dimensions	17.4(w) x 13.82(d) x 1.72(h) in (44.3 x 35.1 x 4.39 cm) (1U height)
Weight	10.9 lb (4.94 kg)
Port Types
LAN Ports	48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only
Dual Personality Ports	N/A
1/2.5/5/10GbE	N/A
SFP Ports	4 SFP 1GbE ports
SFP+ Ports	N/A
SFP28 Ports	N/A
SFP56 Ports	N/A
XFP Ports	N/A
X2 Ports	N/A
CX4 Ports	N/A
10GBASE-T Ports	N/A
QSFP+ Ports	N/A
QSFP28 Ports	N/A
QSFP56 Ports	N/A
QSFP-DD Ports	N/A
Module Slots	N/A
Console Port	N/A
Power Supplies
Power supply slots	N/A
Power supply requirements	Internal power supply
Memory and Processor
Memory and Processor	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Gigabit Module	N/A
10Gb Module	N/A
Management Module	N/A
Fabric Module	N/A
I/O Module	N/A
Mounting
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
Performance
100 Mb Latency	< 5.2 uSec
1000 Mb Latency	< 2.8 uSec
10 Gbps Latency	N/A
40 Gbps Latency	N/A
Throughput	77.37 Mpps
Switching Capacity	104 Gbps
Switch Fabric Speed	N/A
Routing Table Size	N/A
MAC Address Table Size	16000 entries
MACsec Capable Hardware	N/A
MACsec Software Support	N/A
MACsec with EAP-TLS	N/A
MACsec Capable Uplink Ports	N/A
Electrical Characteristics
Description	N/A
Voltage	100 - 240 VAC
Current	5.2A/2.6A
Frequency	50/60 Hz
Maximum Power Consumption	463 W
Maximum Heat Dissipation	1579.82 BTU/hr
PoE power	N/A
Notes	N/A
Management
Management	Aruba Instant On Portal, Web browser, SNMP Manager
