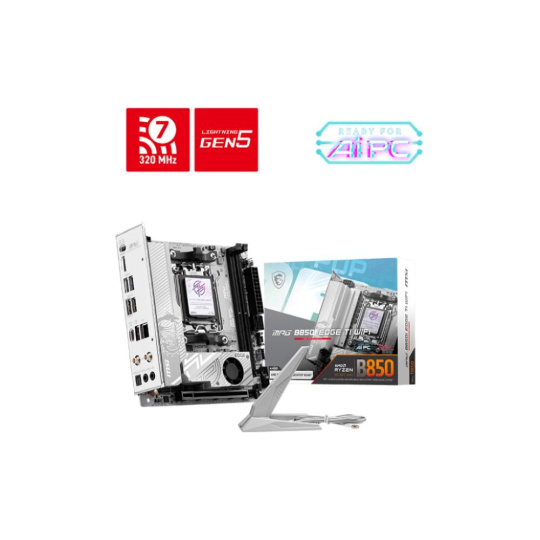

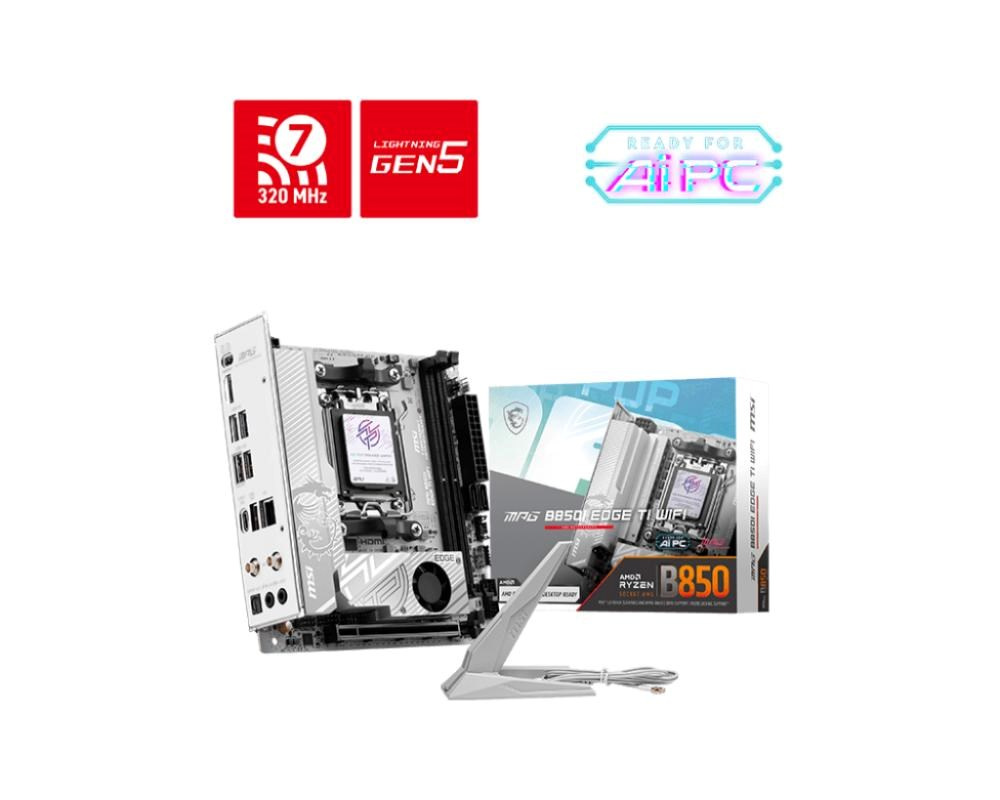

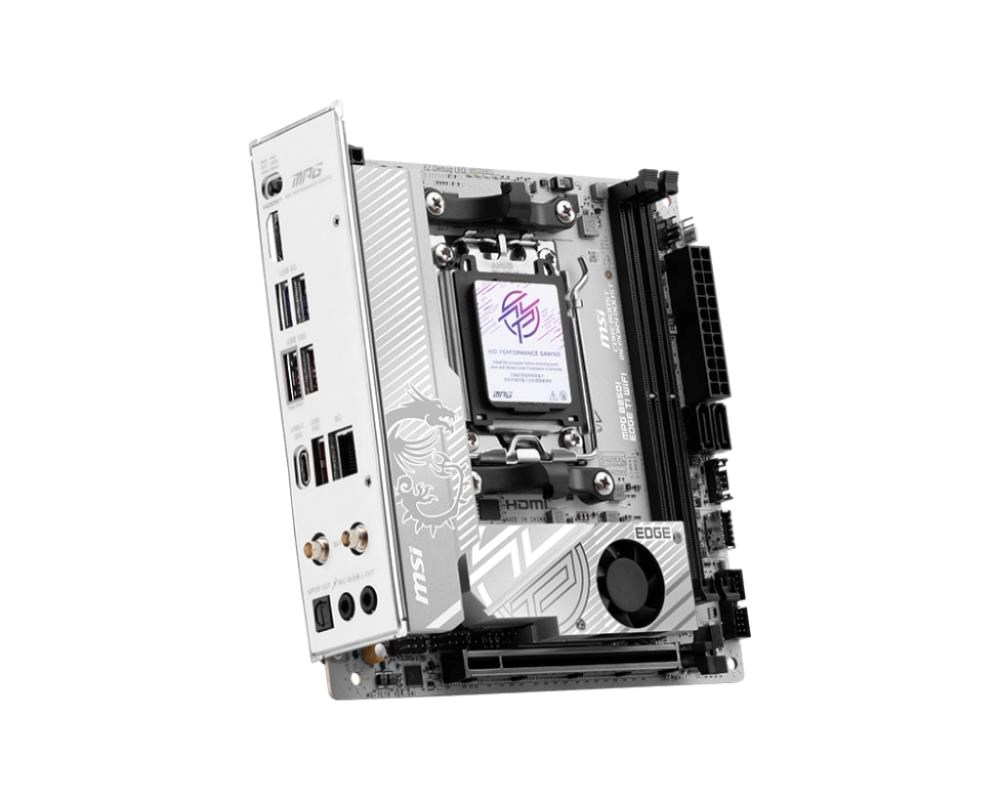

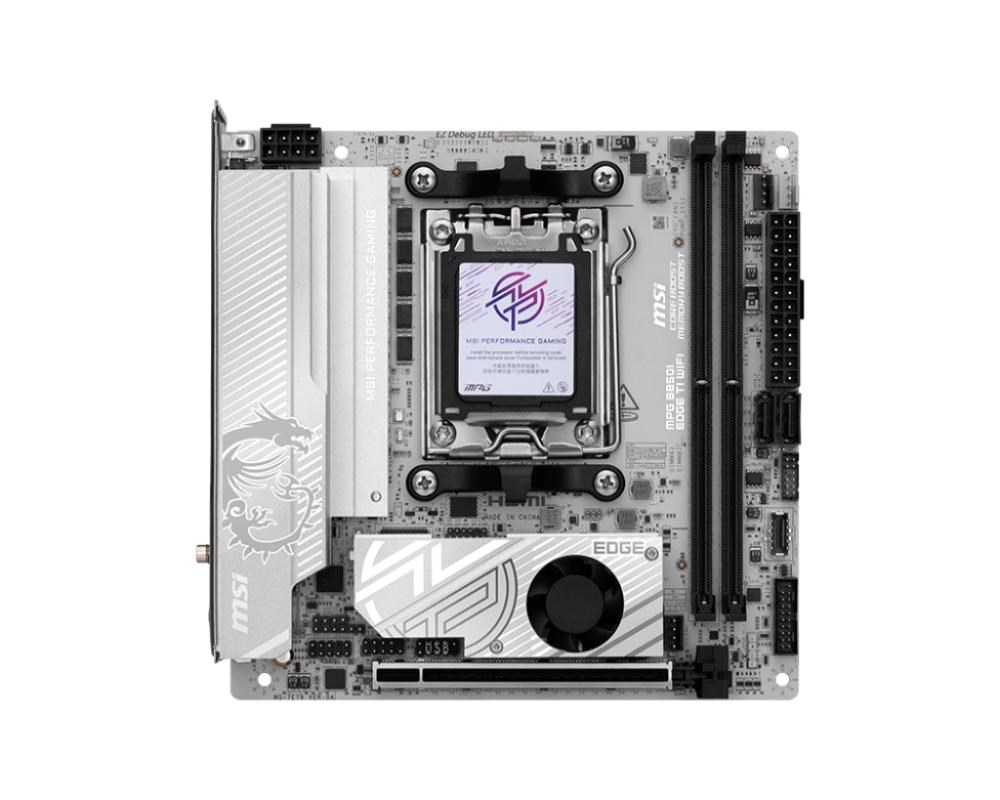

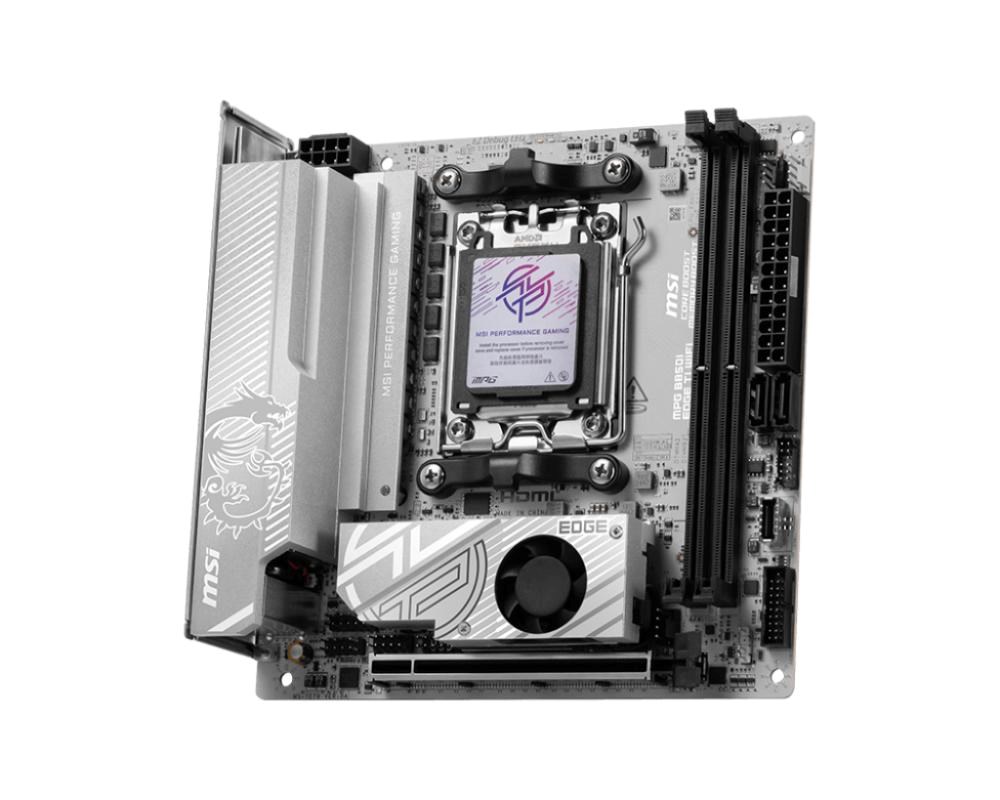

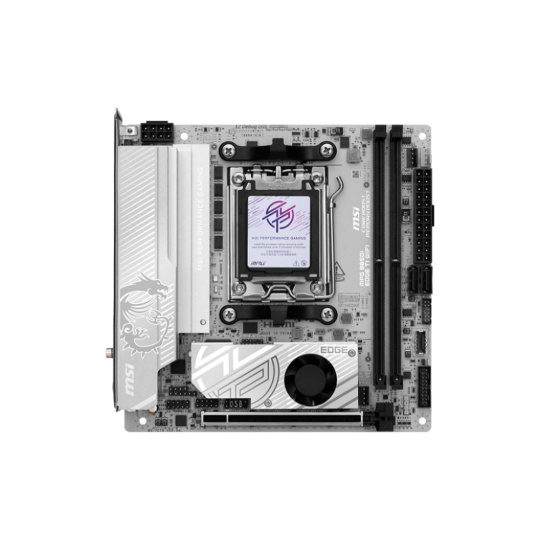

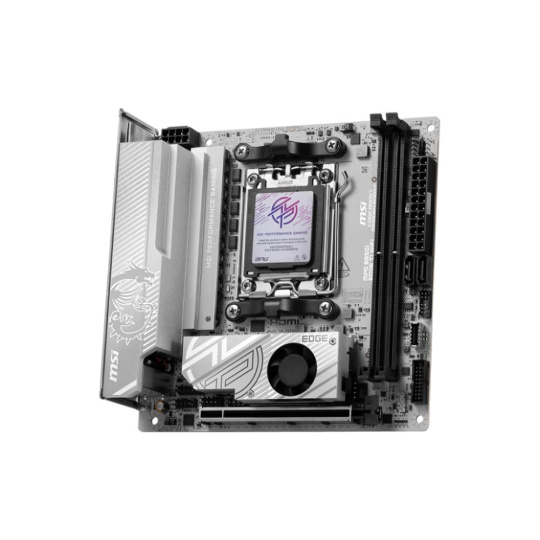

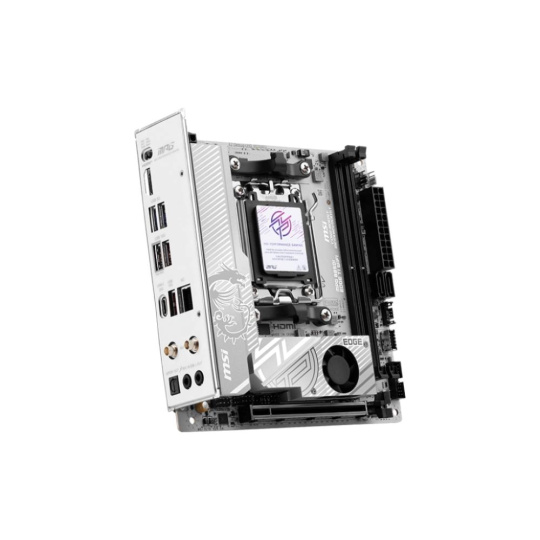

MSI MPG B850I EDGE TI WIFI
MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ITX motherboard for AMD Ryzen™ 9000 series processors.
Chipset
AMD B850
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 8000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Graphics
1x HDMI™
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio
Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G
M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot
• Supports up to PCIe 4.0 x4
• Supports 2280 storage devices
RAID
• Supports RAID 0, and RAID 1 for SATA storage devices
• Supports RAID 0, and RAID 1 for M.2 NVMe storage devices
USB
2x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN
1x Realtek® 8126 5G LAN
Internal I/O Connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Wireless Communication module
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE
4x EZ Debug LED
1x EZ Memory Detection LED

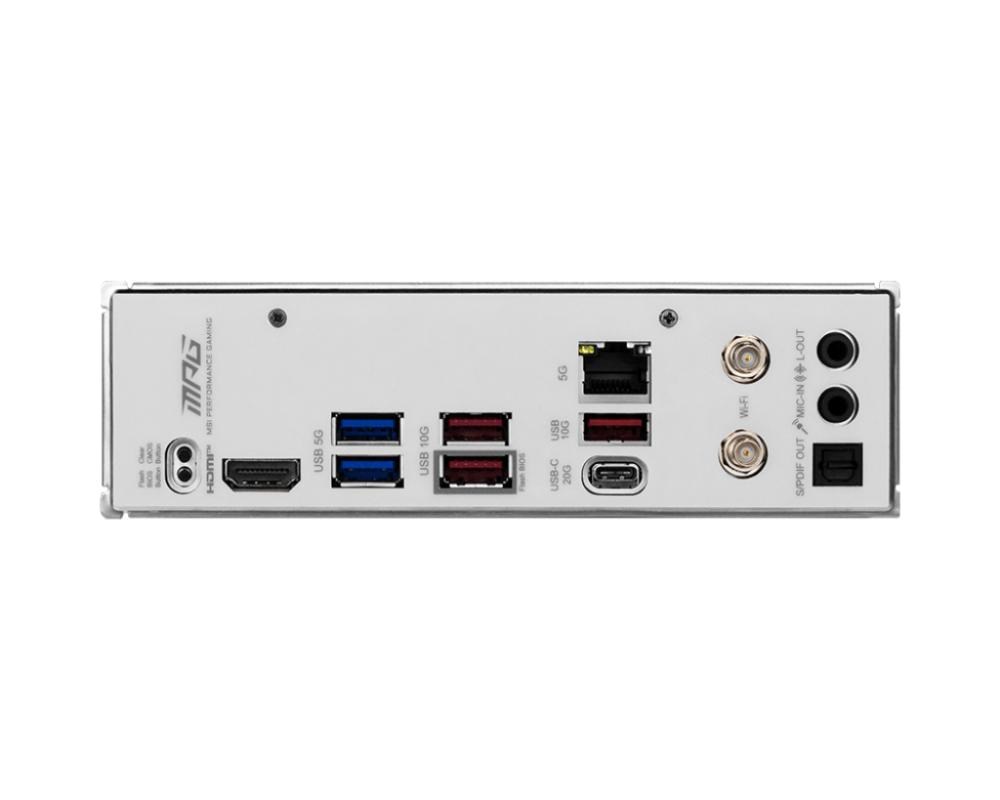

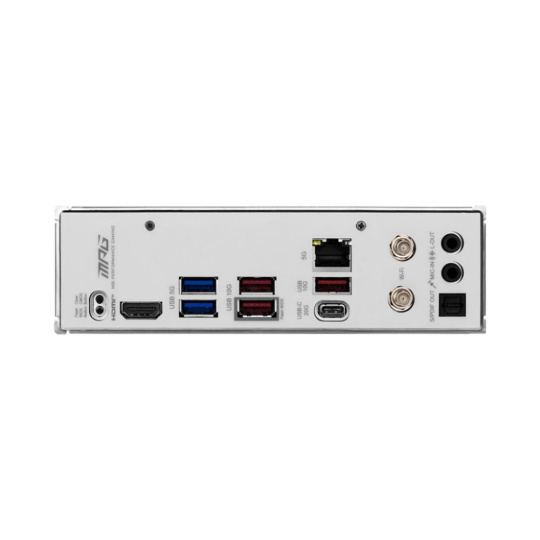

Back Panel I/O Ports
Clear CMOS Button
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 5Gbps Type-A
USB 10Gbps Type-A
USB 20Gbps Type-C
USB 10Gbps Type-A
Optical S/PDIF Out
Operating System
Support for Windows® 11 64-bit
BOX CONTENT
Form Factor
Mini-ITX
170mmx170mm
