MSI MB Sc LGA1200 Z590-A PRO, Intel Z590, 4xDDR4, 1xDP, 1xHDMI

Socket (pätica):Socket 1200; Formát:ATX; Chipset:Intel; Typ pamäťového modulu:DDR4; PCI express 16x:Více než 1; Integrovaná LAN karta:1; Podpora RAID:1, 5, 10; Rozhranie:HDMI, USB 2.0, USB 3.2, LAN, DisplayPort; Ďalšie rozhranie:M.2.... viac
Bežná cena: 204.79 EUR (-0%)
170.01 EUR bez DPH
Skladom > 5 ks
204.01 EUR
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 2648072
EAN: 4719072800543
Záruka: 36 Měsíc(ů)
Popis a parametre

MSI MB Sc LGA1200 Z590-A PRO, Intel Z590, 4xDDR4, 1xDP, 1xHDMI

Z590-A PRO



  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket

  • Supports DDR4 Memory, up to 5333(OC) MHz

  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2

  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

  • Audio Boost: Reward your ears with studio grade sound quality

  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™


PROCESSOR


Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors*
Processor socket LGA1200
*Please go to intel.com for compatibility information


CHIPSET


Intel® Z590 Chipset


MEMORY


4x DDR4 memory slots, support up to 128GB *
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)*
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
*Please refer www.msi.com for more information on compatible memory


EXPANSION SLOT


2x PCIe x16 slots
Support x16/ x4
PCI_E1 (from CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 (from Z590 chipset)
Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (from Z590 chipset)


ONBOARD GRAPHICS


1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz */**
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz */**
*Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU installed.


MULTI-GPU


Supports 2-Way AMD® CrossFire™ Technology


STORAGE


6x SATA 6Gb/s ports (from Z590 chipset)
3x M.2 slots (Key M)
M2_1 slot (from CPU) *
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2*, M2_3** slots (from Z590 chipset)
Support up to PCIe 3.0x4
Support up to SATA 6Gb/s
Support 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready ***
Support Intel® Smart Response Technology for Intel Core™ processors
*SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
**SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.
***Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.


RAID


Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices


USB


Intel® Z590 Chipset
Intel® Z590 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
USB 2.0 Hubs GL850G
4x USB 2.0 Type-A ports on the back panel
4x USB 2.0 ports are available through the internal USB 2.0 connectors


AUDIO


Realtek®ALC897 Codec
7.1-Channel High Definition Audio


LAN


1x Intel® I225-V 2.5Gbps LAN controller


INTERNAL CONNECTORS


1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

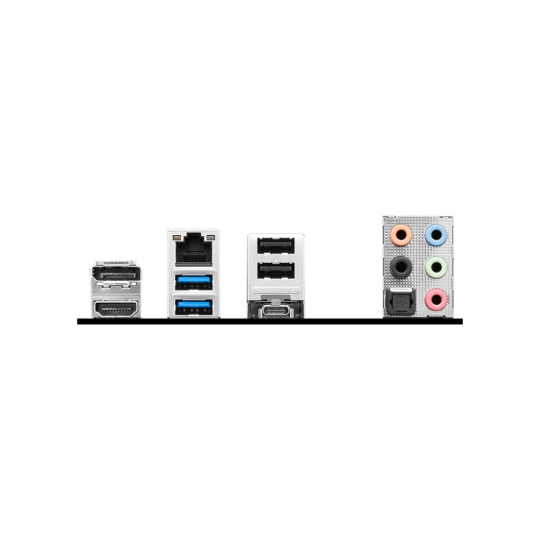

BACK PANEL PORTS


Keyboard / Mouse
DisplayPort
USB 2.0
LAN port
Audio connector
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
MSI Z590-A PRO back panel ports


DIMENSIONS


ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)


MOUNTING


9 mounting holes


OPERATING SYSTEM


Support for Windows® 10 64-bit

.
Typ pamäťového modulu
DDR4
Rozhranie
HDMI
Socket (pätica)
Socket 1200
Formát
ATX
Chipset
Intel
PCI express 16x
Více než 1
Integrovaná LAN karta
1
Podpora RAID
5
Ďalšie rozhranie
M.2
