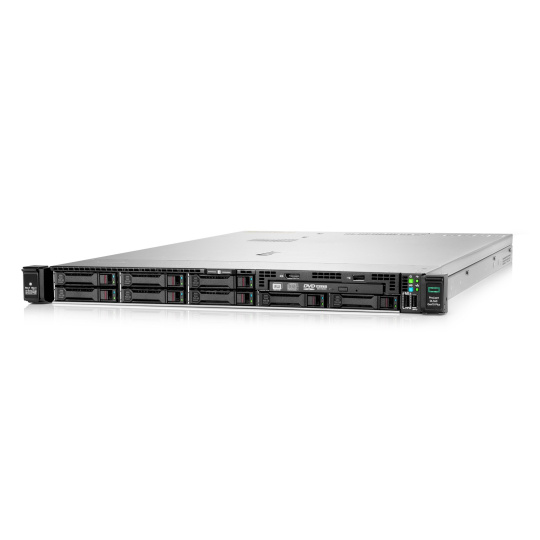

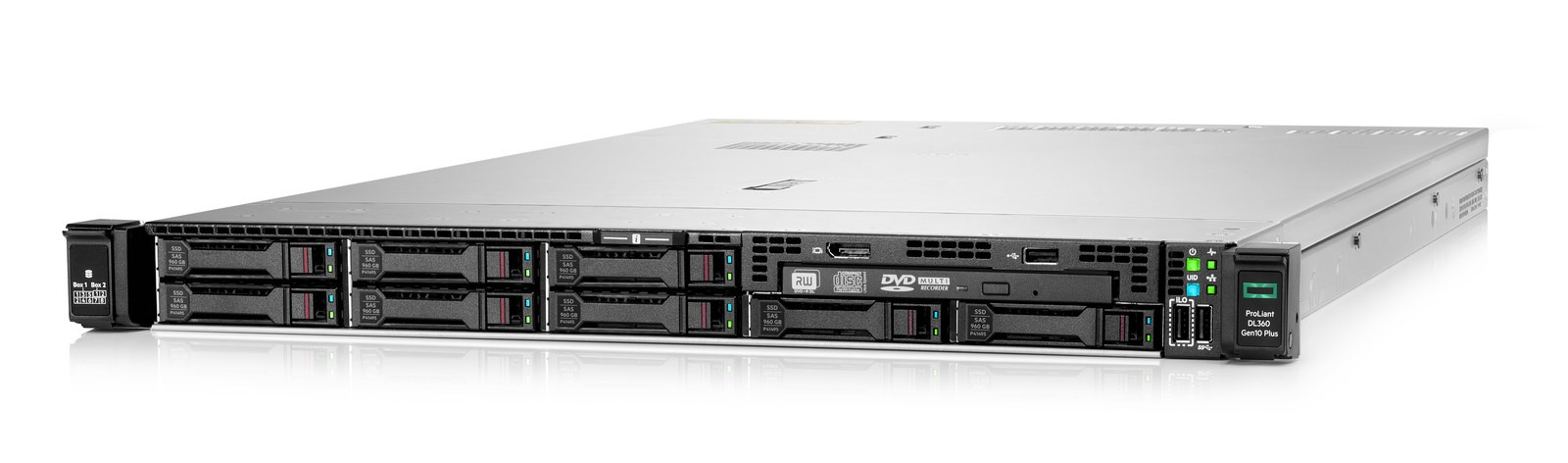

HPE PL DL360g10 Plus 4314 (2.4G/16C) 1x32G MR416i-a/4G 8SFFBCU3 1x800W 2x10Gb-T EIR 1U RENEW
HPE PL DL360g10 Plus 4314 (2.4G/16C) 1x32G MR416i-a/4G 8SFFBCU3 1x800W 2x10Gb-T EIR 1U RENEW
HPE PL DL360g10 Plus 4314 (2.4G/16C) 1x32G MR416i-a/4G 8SFFBCU3 1x800W 2x10Gb-T EIR 1U RENEW
| SKU Number | P55242-B21 |
| Model Name | HPE ProLiant DL360 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server |
| Chassis | 8SFF |
| Backplane | 8SFF x1 Tri-mode U.3 BC |
| Processor | 4314 (16-Core, 2.4 GHz, 135W)1 |
| Number of Processors | One processor with standard heatsink |
| Memory | 32 GB RDIMM 2R 3200 MT/s (1x 32 GB) & 31 DIMM blanks Notes: Runs at 2667 MT/s due to processor limitation. |
| Network Controller | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE Notes: No embedded networking |
| Storage Controller | MR416i-a/4GB with Smart Storage Battery |
| Hard Drive | None included |
| Optical Drive | Not included (Optical Drive options available) |
| PCIe Slots | 2 PCIe: 1 x16 FH, 1 x16 LP |
| Power Supply | 1x 800W Platinum |
| Fans | 7 - High Performance |
| Management | HPE iLO 5 |
| Security | TPM (Trusted Platform Module) Notes: Disabled on AA1 SKUs |
| Rail Kit | Easy Install w/o CMA Notes: Server does not support shelf mounted rail kits ("L" brackets). |
| Form Factor | 1U Rack |
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
.
