BAZAR - HPE FlexNetwork 5130 24G 4SFP+ 1-slot HI Switch (Must select min 1 power supply jd362B) JH323A RENEW - Rozbaleno

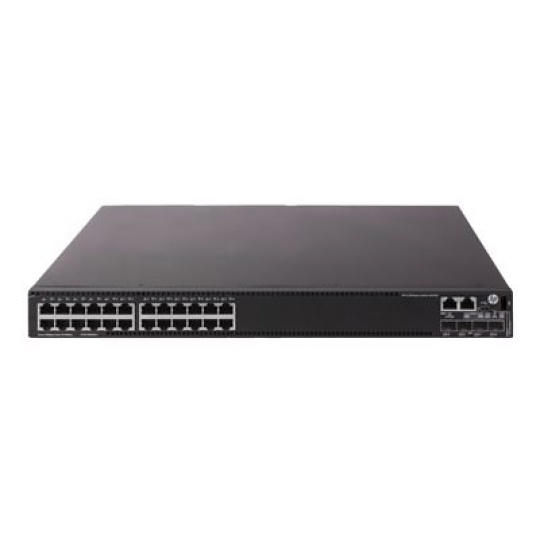

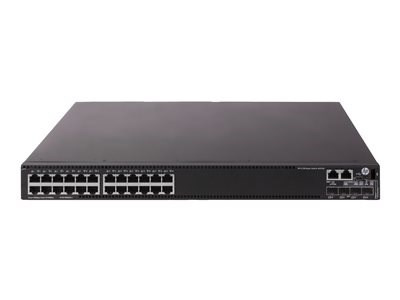

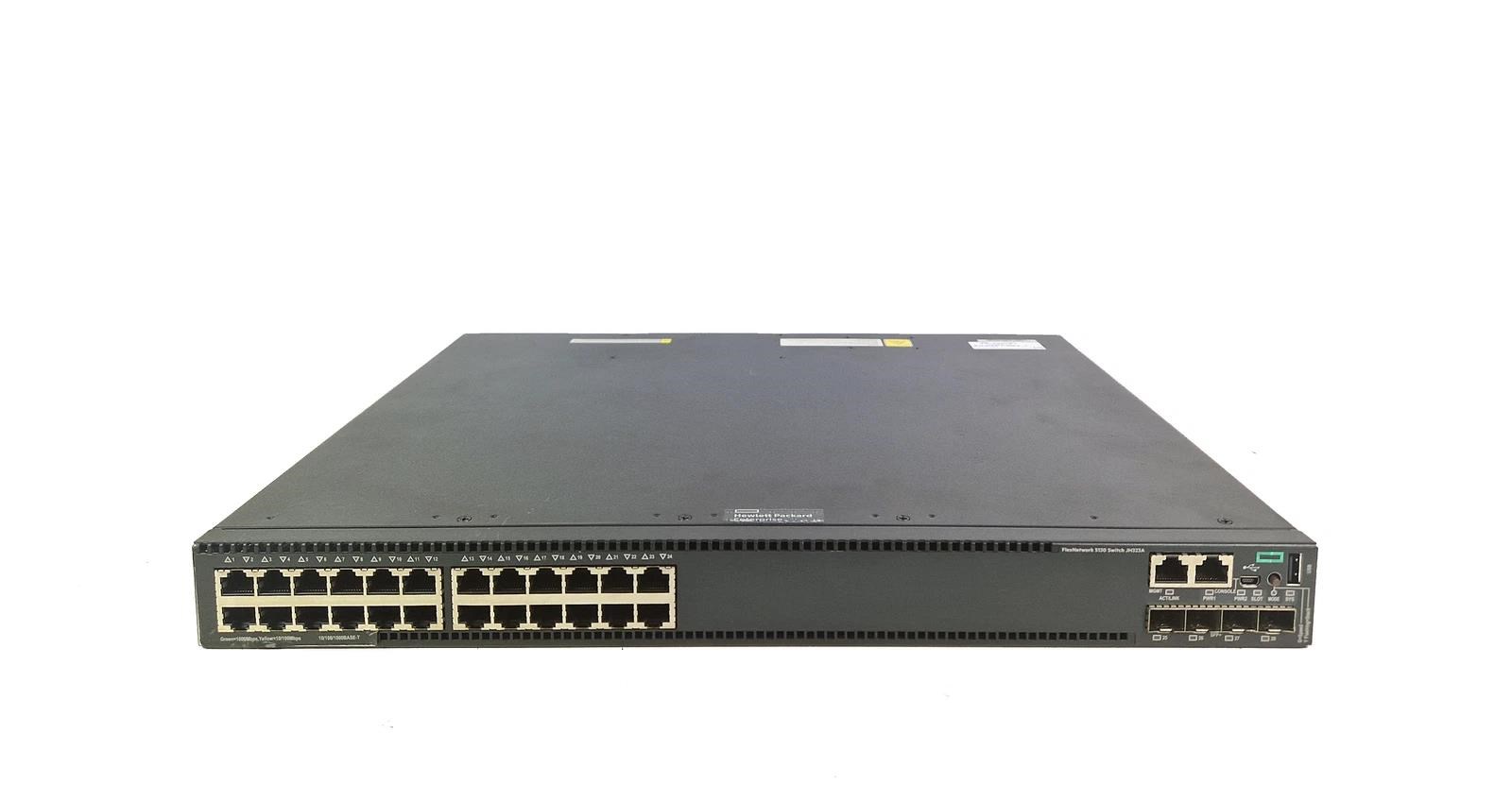

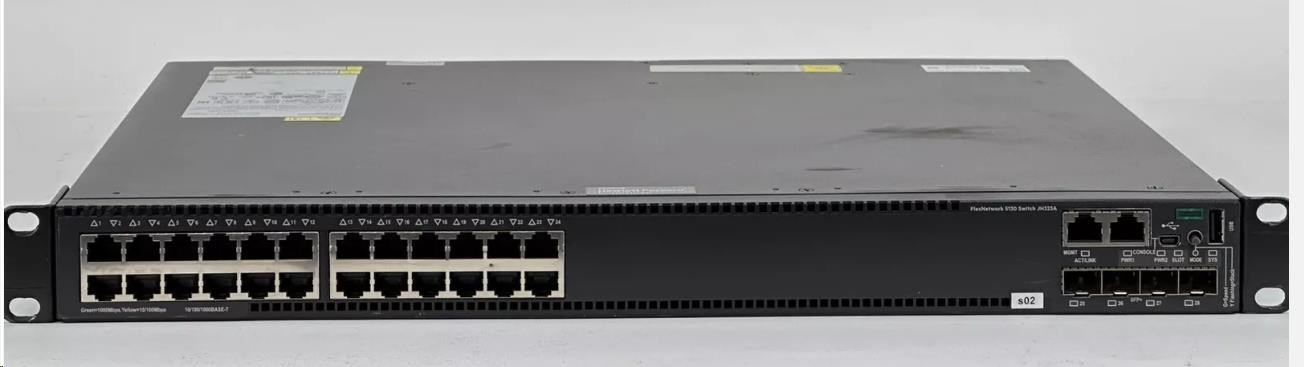

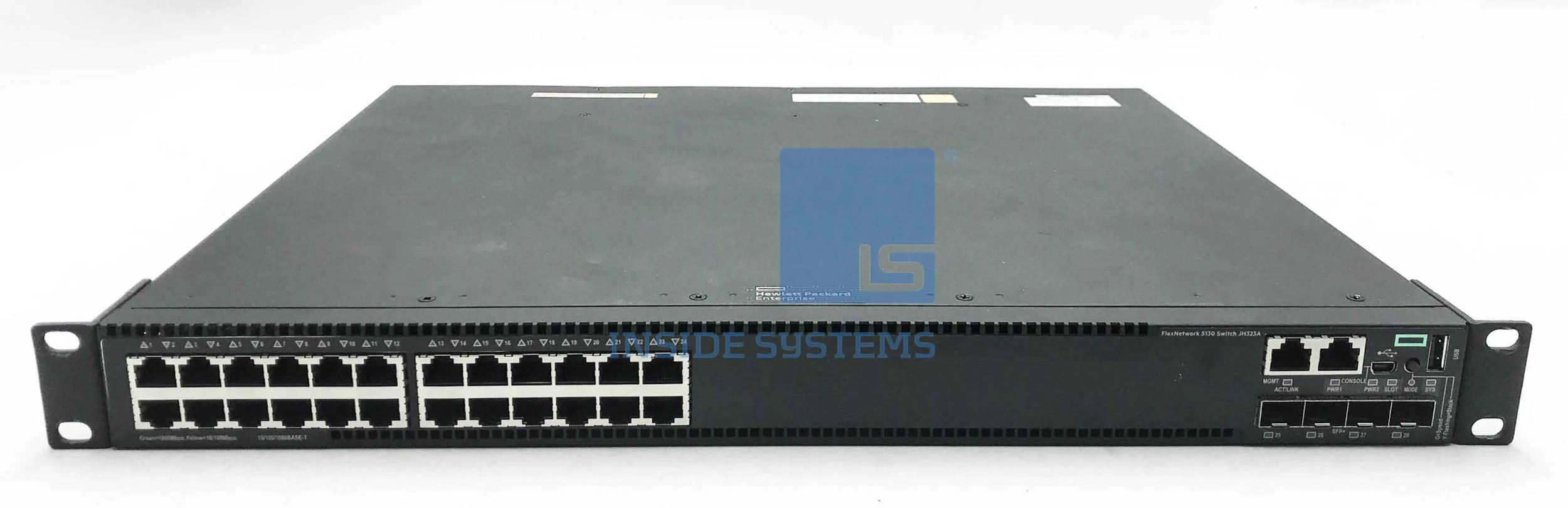

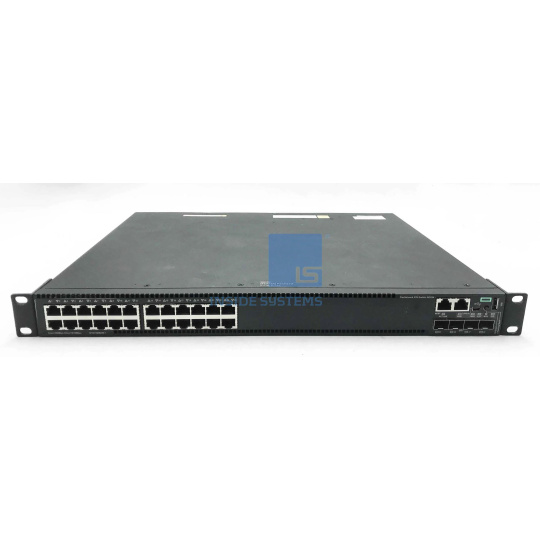

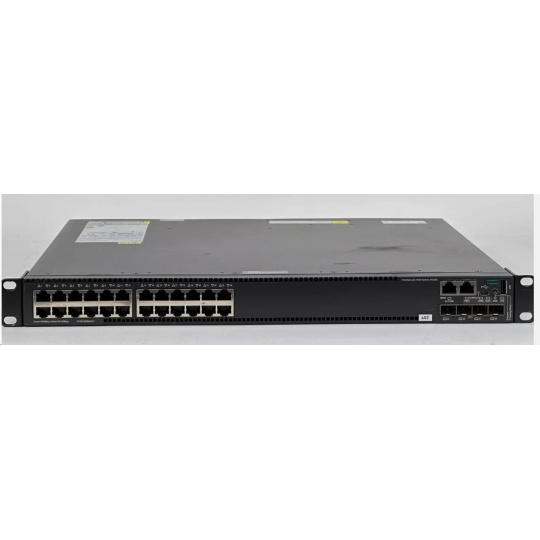

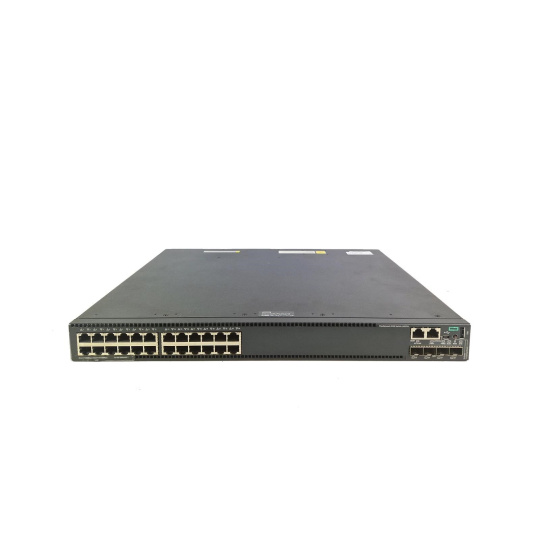

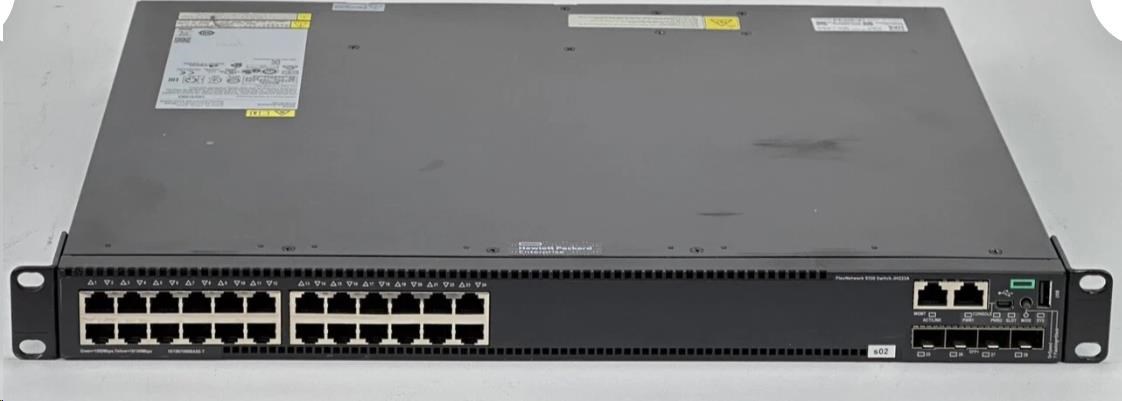

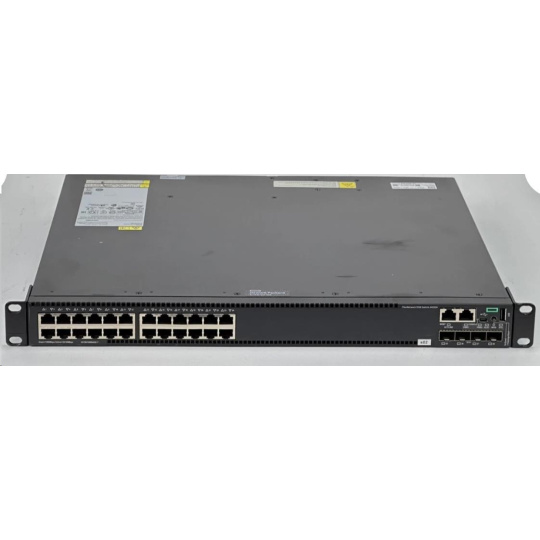

HPE FlexNetwork 5130 24G 4SFP+ 1-slot HI Switch (Must select min 1 power supply) JH323A RENEW jen rozbaleno
Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding. These switches provide four 10-Gigabit Ethernet (10GbE) interfaces and use IRF (Intelligent Resilient Fabric) technology to virtualize multiple switches into one, enhancing resilience and ease of management. These switches offer high availability, simplified management, robust security policies, and support for dual modular power supplies. They are suitable for edge deployments and small data center server aggregation.
Key Features
- Scalable 10GbE uplinks and 9-chassis IRF with 80 GB/s stacking
- PoE+ (30W per port) across all ports
- 4 built-in SFP+ 10GbE uplinks
- Support for OpenFlow 1.3
- MACsec security support
Standard Features
Software-Defined Networking
- OpenFlow 1.3: Enables SDN by separating control and data planes.
Management
- Remote CLI management, RADIUS/HWTACACS authentication
- Multiple config files, session logging, SNMP/RMON support
- LLDP and sFlow for network visibility
- Remote mirroring and management VLANs
Security
- ACLs (IPv4/IPv6, VLAN, port-based)
- IEEE 802.1X, MAC-based authentication, port security
- Guest VLAN, secure management via SSH/SSL/SNMPv3
- DoS protection (DHCP guard, IP source guard, ARP protection)
- IPv6 security: DHCPv6, ND Snooping, IPv6 source guard
Quality of Service (QoS)
- Broadcast rate control, advanced classifier-based QoS
- SP, WRR, SP+WRR queue management
- Traffic policing with CAR and line rate support
Connectivity
- Auto-MDIX, IEEE 802.3x flow control
- Up to 48x 1GbE ports, 4x 10GbE SFP+
- IEEE 802.3at PoE+ and pre-standard PoE device support
- Ethernet OAM (802.3ah), jumbo frames up to 9KB
Performance
- Non-blocking fabric (up to 216Gb/s)
- Wirespeed ACLs using TCAM
High Availability
- IRF for simplified redundancy and high availability
- Smart Link failover < 100ms
- Spanning Tree (STP, RSTP, MSTP, PVST+)
- Dual internal redundant power supply (up to 1440W PoE+)
Layer 2 Switching
- 32K MAC table, 4094 VLANs (802.1Q), QinQ
- Port aggregation, DLDP, jumbo frames
Layer 3 Services and Routing
- Static routing (IPv4 & IPv6), RIP v1/v2
- Policy-Based Routing (PBR), ARP, DHCP, loopback interfaces
- UDP helper, route maps, DHCP relay/server
Convergence and Voice
- LLDP, LLDP-MED, CDP compatibility
- Voice VLANs, IP multicast snooping (IGMP), MSDP
- PoE allocation via LLDP-MED, IEEE class, or manually
Manageability
- Dual flash images, multiple config storage
- IPv6 management tools: pingv6, Telnetv6, SNMPv6, etc.
- Virtual cable tests for diagnostics
Warranty and Support
Limited Lifetime Warranty For details, see: HPE Warranty Summary
Software and support: HPE Networking SupportEnvironmental Specification

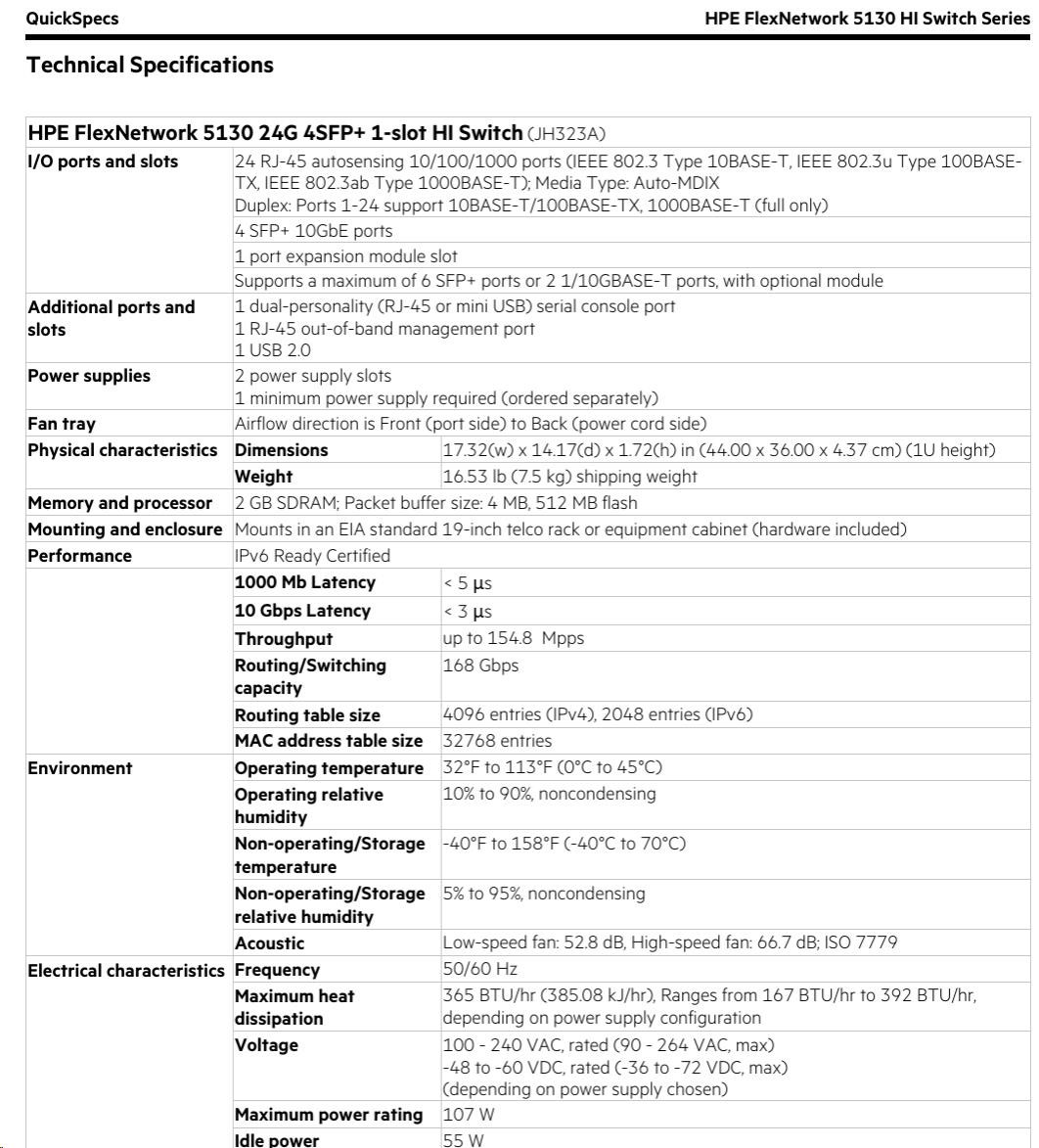

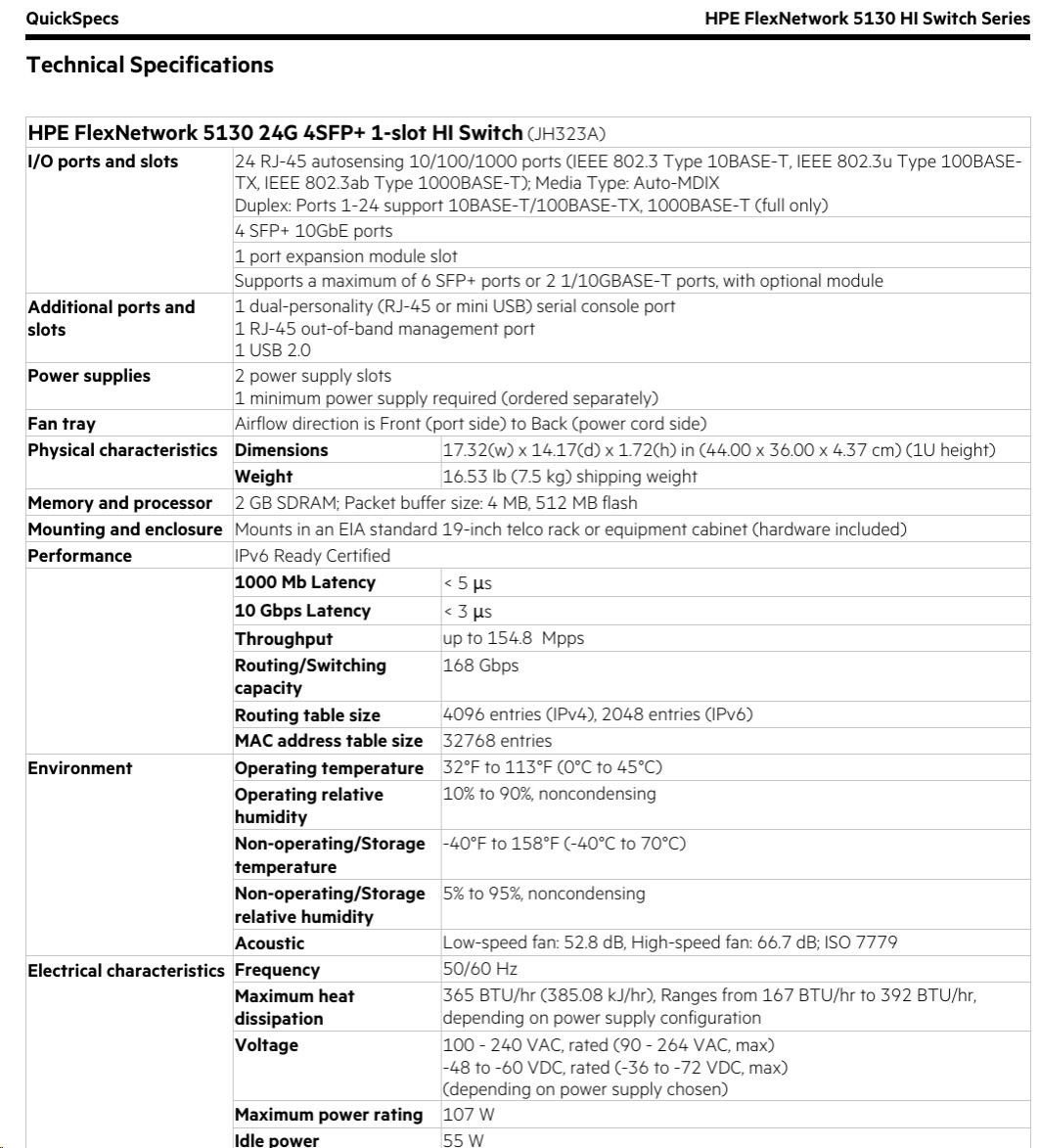

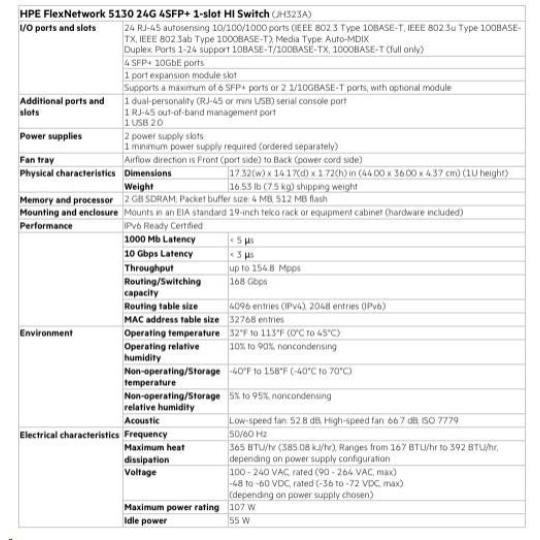

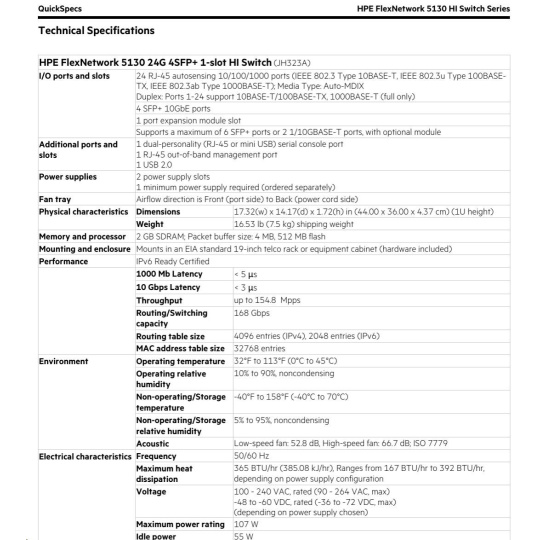

HPE FlexNetwork 5130 24G 4SFP+ 1-slot HI Switch (JH323A)
Power Supply Options
- HPE X361 150W 100–240VAC to 12VDC Power Supply – Model: JD362B
- HPE X361 150W 48–60VDC to 12VDC Power Supply – Model: JD366B
I/O Ports and Slots
- 24 × RJ-45 autosensing 10/100/1000 ports
- 4 × SFP+ 10GbE ports
- 1 × Port expansion module slot (supports 6 SFP+ or 2 1/10GBASE-T ports)
- 1 × Dual-personality console port (RJ-45 or mini USB)
- 1 × Out-of-band management port (RJ-45)
- 1 × USB 2.0 port

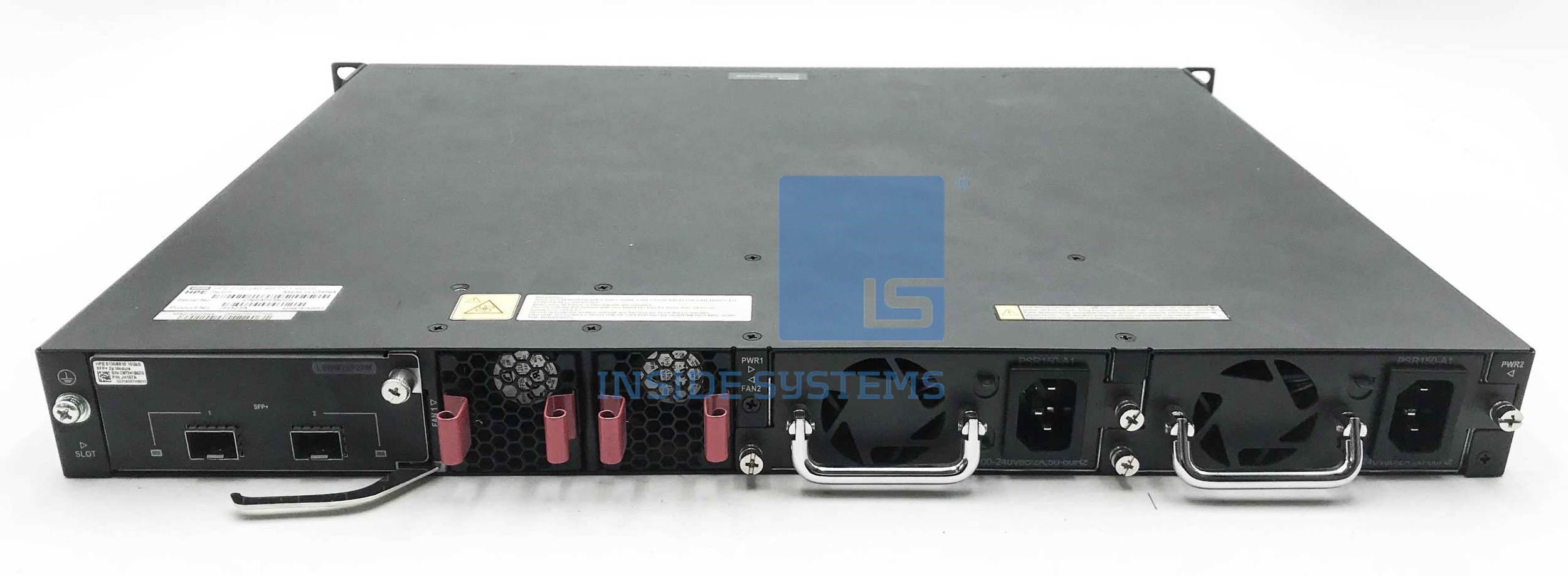

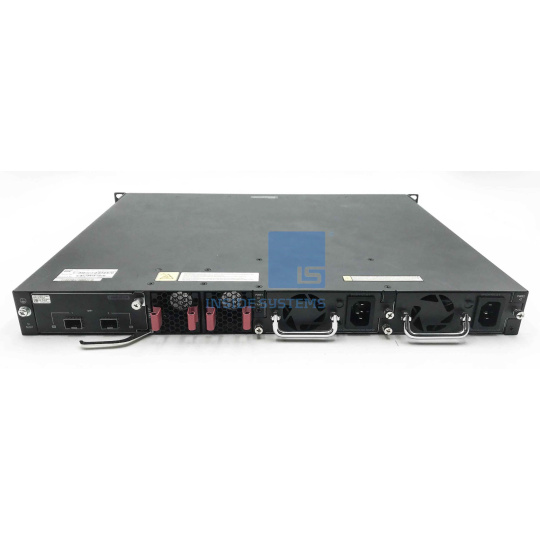

Power and Cooling
- 2 × Power supply slots (1 required)
- Airflow: Front (port side) to Back (power side)
Physical Characteristics
- Dimensions: 17.32” W × 14.17” D × 1.72” H (1U)
- Weight: 7.5 kg (16.53 lb)
Memory and Performance
- Memory: 2 GB SDRAM, 512 MB Flash
- Packet buffer: 4 MB
- Throughput: up to 154.8 Mpps
- Switching Capacity: 168 Gbps
- MAC Address Table: 32,768 entries
- Routing Table: 4096 IPv4, 2048 IPv6
- Latency: < 5 µs (1G), < 3 µs (10G)
Environmental
- Operating Temp: 0°C to 45°C (32°F to 113°F)
- Storage Temp: -40°C to 70°C (-40°F to 158°F)
- Humidity: 10% to 90% (operating), 5% to 95% (non-op)
- Acoustic: 52.8 dB (low), 66.7 dB (high)
Electrical Characteristics
- Frequency: 50/60 Hz
- Voltage: 100–240 VAC / -48 to -60 VDC (depending on PSU)
- Max Power: 107 W
- Idle Power: 55 W
- Heat Dissipation: 365–392 BTU/hr
Note:
- Idle power reflects device with no active ports.
- Max power and heat values are based on worst-case fully loaded configuration.
- Idle power reflects device with no active ports.
- Max power and heat values are based on worst-case fully loaded configuration.
Certifications
Safety:
- UL 60950-1, EN 60950-1, IEC 60950-1, FDA 21 CFR, RoHS
- FCC Class A, EN 55022 Class A, CISPR 22/24, VCCI, EMC Directive
- EN 55024, EN 300 386
Management
- CLI, Web GUI, SNMP v1/v2/v3
- IMC – Intelligent Management Center compatible
- DHCP, Telnet, TFTP, FTP, SSH, NTP, RMON
Standards and Protocols
General Networking Protocols
- IEEE 802.1 series (ad, ak, AE, AX, D, p, Q, s, v, w, X)
- IEEE 802.3 series (i, u, x, ab, ac, ad, ae, af, at, az, z)
- IPv4/IPv6: RFC 791, RFC 2460, RFC 4291, etc.
- Routing/ARP: RFC 826, 1812, 1256, etc.
- Multicast: RFC 2236, RFC 3810, RFC 4541
- DHCP/BOOTP: RFC 951, RFC 2131, RFC 3046, etc.
Security Protocols
- IEEE 802.1X Port Access Control
- MACsec (802.1AE)
- RADIUS (RFC 2138, 2865), TACACS+ (RFC 1492)
- SSL, SSHv2, SNMPv3 security models
Network Management
- SNMP v1/v2c/v3 (RFC 1157, 1901–1907, 3416–3418)
- LLDP (IEEE 802.1AB), LLDP-MED (ANSI/TIA-1057)
- RMON (RFC 2819), Entity MIB, Interface MIB
- IMC support, CLI, Telnet, SSH, HTTP, HTTPS
QoS/CoS Support
- RFC 2474, 2597, 3246, 3260 – Differentiated Services
MIBs and SNMP
- MIB-II (RFC 1213), Ethernet MIBs (RFC 2665, 2668)
- Bridge MIB (RFC 1493), RMON (RFC 1757)
- Power Ethernet MIB (RFC 3621), Interface MIB (RFC 2863)
